Philips Deadbolt Smart Lock Comparison: Hardware Specs and Compatibility Breakdown

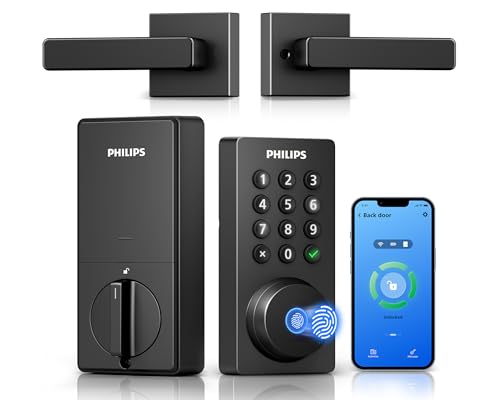

The Philips WiFi Keypad Deadbolt with Handle serves as an all-inclusive front entryway solution, packaging a motorized deadbolt with a matching pair of door levers and a heavy-duty latch assembly. Operating under model designation philips ddl242x-1hw-l within the manufacturer’s 4200 series catalog, this unit integrates a 2.4GHz Wi-Fi receiver directly into the interior assembly. This eliminates the necessity of purchasing an auxiliary Wi-Fi bridge, provided the door remains within 33 feet (10 meters) of your wireless router. Homeowners upgrading standard residential entries benefit from receiving both the deadbolt and lower passage hardware in a unified box.

Authentication on this philips 4200 series smart lock is led by a high-speed biometric module capable of reading fingerprints in 0.3 seconds. Users who prefer non-biometric access can utilize versatile passcode options configured directly within the Philips Home Access app, including permanent, one-time, periodic, and recurring PIN structures ideal for housekeeping services or rental guests. The exterior escutcheon incorporates anti-drill engineering alongside a backlit keypad featuring anti-peeping password protection, allowing users to enter random numerical sequences before and after their authentic code. Homeowners comparing comprehensive smart security hardware against modular platforms like schlage door locks and deadbolts will value how this package resolves both latching and deadbolt hardware simultaneously.

For automated access management, the integrated auto-lock timer can be adjusted inside the app between 0 and 180 seconds, though the factory default leaves this feature toggled off. Power delivery requires standard 1.5V alkaline AA batteries (not included), yielding up to 6 months of operation under regular daily cycles before the intelligent low-battery alert signals a replacement. This handle-equipped kit gives way to standalone deadbolt models when your exterior door already features a specialized mortise handle or dedicated architectural grip that you do not wish to replace.

• Integrated 0.3-second fast-access biometric fingerprint reader
• Direct 2.4GHz Wi-Fi connectivity without secondary hub hardware
• Complete handle set including two matching levers and full latch assembly
• Customizable automated locking delay adjustable from 0 to 180 seconds

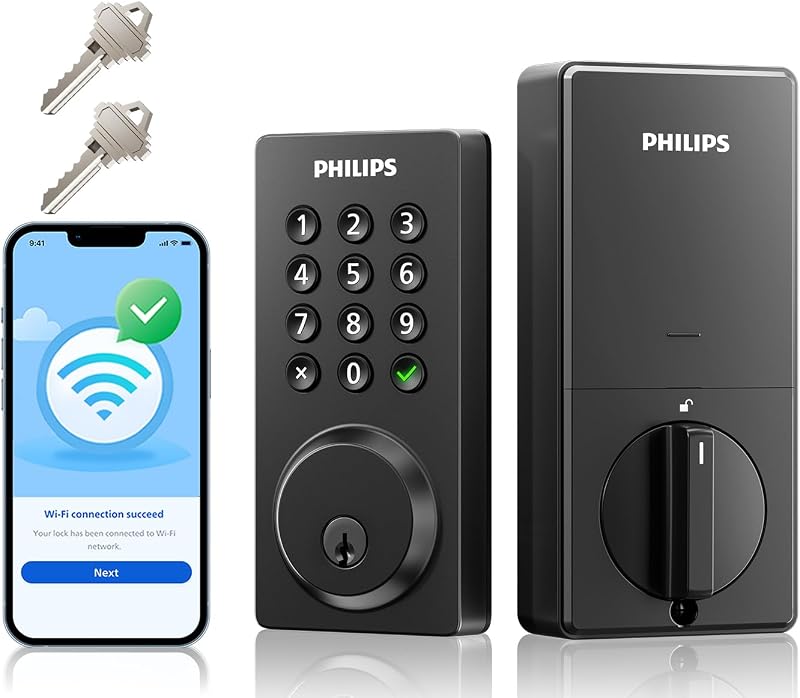

The Philips Smart Lock, cataloged under model number philips ddl242x-15hw, represents a dedicated deadbolt retrofit designed to mount above your existing passage latch or handle set. Unlike touch-sensitive glass surfaces that can become unresponsive in inclement weather or while wearing gloves, this lock utilizes durable physical buttons for its keypad interface. The direct-connect 2.4GHz Wi-Fi architecture links the assembly straight to the local wireless network, granting remote status checks, live access history monitoring, and lock toggling through the companion smartphone application without external adapters.

Security and build specifications for this deadbolt highlight substantial physical reinforcement, including a certified 2200N pressure resistance rating and an IP54 weatherproofing standard. The electronic housing functions across an operational temperature envelope spanning -31°F to 150°F (-35°C to 66°C), resisting thermal degradation in extreme climates. Users can configure up to 100 distinct access passwords, grouping PIN assignments into permanent, timed, and single-use categories. If an unauthorized individual enters an incorrect passcode multiple times sequentially, the system automatically triggers an internal audible alarm and transmits a push alert to the owner’s smartphone.

The unit features four unlock pathways: companion app control, mechanical override keys, custom passcodes, and voice assistant integration through Amazon Alexa or Google Assistant. Electrical power is supplied by an 8 AA battery array (sold separately), which delivers up to 6 months of service life based on an estimated frequency of 20 to 30 operations per day. Audible beeps trigger when power drops below 10%, while customer protection is backed by a 24-month warranty and US-based phone technical support. When comparing this tactile standalone deadbolt with modern alternatives such as the tapo deadbolt smart lock, the emphasis here falls squarely on heavy-duty physical pushbuttons and extreme climate endurance.

• Rugged physical pushbuttons providing tactile numeric feedback
• Substantial 2200N pressure resistance and IP54 environmental ingress rating
• Memory storage accommodating up to 100 custom PIN access codes
• Dual-year warranty supported by dedicated US-based phone assistance

The Philips WiFi Smart Keypad Deadbolt Lock carries the identical core model designation philips ddl242x-15hw (UPC 850071183153) and matches the structural push-button layout found on its sister deadbolt. Engineered purely for keyless entry deadbolt duties, the device features four distinct operational modes: voice actuation via Alexa and Google Assistant, manual physical key cylinders, alphanumeric keypad entry, and remote management through the Philips Home Access app. The tactile buttons deliver distinct mechanical feedback upon actuation, avoiding false inputs common on capacitive glass panels during heavy rain.

The listing highlights the same industrial exterior housing, engineered to survive demanding environments from -31°F to 150°F (-35°C to 66°C) while maintaining an IP54 waterproof certification and 2200N lateral load resistance. Property managers and Airbnb hosts can deploy up to 100 customizable passwords directly through the mobile interface, scheduling recurring cleaning windows or momentary entry allowances. Automated security protocols allow users to designate an auto-lock interval spanning 10 to 180 seconds, ensuring the motorized bolt throws completely shut even when departing in haste.

Internal electronics draw energy from an 8 AA battery configuration (batteries excluded from the box), maintaining consistent latch throws over a projected 6-month lifespan at 20 to 30 unlocks daily. The lock features a 10% battery threshold alarm alongside real-time smartphone notification dispatches. Unlike the 24-month coverage seen on certain retail variations, this specific listing cites a 12-month warranty period alongside standard 24/7 email and US phone assistance. This standalone configuration yields to handle-inclusive packages whenever an entryway lacks a structurally matching lower passage latch.

• Hub-free 2.4GHz Wi-Fi integration managed via Philips Home Access app
• Wide operating range from -31°F to 150°F with IP54 water resistance
• Mechanical physical pushbuttons paired with anti-peeping code protection
• Configurable 10-to-180-second automatic deadbolt locking timer

The Philips Wi-Fi Smart Lock for Front, known officially by hardware designation philips ddl-241-bk, represents an evolution in standalone residential deadbolt ergonomics. Rather than integrating a fingerprint reader into the center of the keypad or along the bolt housing, the DDL-241-BK positions its biometric scanner at the uppermost apex of the exterior escutcheon. This sensor is set at a calculated 7.17° precision tilt, matching the natural descending angle of an approaching thumb. The internal biometric database holds up to 50 unique fingerprints, making it well-suited for extended families or medium-density residential settings.

In addition to biometrics, this philips wifi keypad deadbolt incorporates four secondary unlock modalities, yielding five total entry options: personalized PIN codes, the mobile app, voice control with Alexa or Google Assistant, and traditional mechanical bypass keys. Digital code storage supports up to 100 smart passcodes, divided into permanent, weekly recurring, date-range, and offline one-time passcodes specifically intended for vacation rental management. A physical locking command can be executed immediately by holding any keypad button for 2 seconds, tapping the checkmark button, or resting a registered fingerprint on the scanner.

The physical chassis fits standard door preparations featuring door thicknesses between 1-3/8 inches and 2 inches, accommodating both left-handed and right-handed swing orientations without mechanical alteration. Power relies on 8 AA 1.5V alkaline batteries (sold separately), which interface with low-voltage alert logic to notify homeowners well before battery exhaustion. For homeowners evaluating entry solutions against ecosystems such as kwikset keyless entry door lock smart lines, this model distinguishes itself through its angled top-mount fingerprint scanner and diverse offline code logic.

• Ergonomic 7.17-degree tilted top-mount biometric fingerprint scanner
• Five distinct unlock methods including offline temporary rental codes
• Broad door thickness compatibility accommodating standard 1-3/8″ to 2″ slabs
• One-touch locking execution via 2-second hold, checkmark, or fingerprint

The Philips WiFi Keypad Door Lock, bearing manufacturer model number philips ddl242x-15hw-l, merges the robust push-button deadbolt mechanism of the 15HW platform with two bundled lever handles for a unified entryway refit. This package targets door installations requiring both upper deadbolt latching and lower passage engagement. The physical buttons across the numeric interface eliminate touch-latency issues, offering dependable mechanical actuation. Built-in 2.4GHz Wi-Fi links directly with local access points, enabling property managers to set permissions, grant remote unlocks, and audit historical logs via the mobile app.

Physical durability metrics mirror the enterprise rating of the standalone models, incorporating 2200N pressure resistance against blunt force alongside an IP54 waterproof exterior rated from -31°F to 150°F (-35°C to 66°C). Access control permits 100 custom passcodes, managed across permanent, timed, and single-use permissions. While the listing title notes an expansive 9-month battery parameter, the technical specifications confirm that when powered by 8 AA batteries (not included) under normal duty cycles of 20 to 30 operations daily, users should expect up to 6 months of steady battery life. An audible chime and app alert trigger when power drops beneath 10%.

Dimensional compatibility is particularly versatile on this kit. The latch mechanism accommodates cross-bore holes measuring either 1-1/2 inches or 2-1/8 inches (38mm or 54mm) and door thicknesses ranging from 1-3/8 inches to 2 inches (35mm to 50mm). Philips estimates DIY installation time at approximately 15 minutes using standard screwdrivers. Backed by a 24-month warranty and dedicated US technical phone support, this handle kit gives way to the 4200 series handle kits when rapid biometric verification is an absolute entry requirement.

• Full hardware bundle containing smart deadbolt and two matching lever handles
• Flexible bore compatibility supporting 1-1/2″ and 2-1/8″ cross-bore preps
• Physical tactile keypad layout backed by 100 programmable password profiles
• Heavy-duty 2200N pressure rating paired with IP54 climate resistance

The second listing designated as Philips WiFi Keypad Door Lock represents the satin nickel, biometric-enabled handle bundle operating under model number philips ddl242x-1hw. Belonging to the Philips 4200 Series, this lock combines an optical fingerprint scanner, an anti-drill exterior deadbolt assembly, and a matching full lever set (including two door levers, latch hardware, and mounting screws). The direct 2.4GHz Wi-Fi system eliminates secondary network bridges, allowing homeowners to monitor door states and grant remote permissions directly from their smartphone.

Biometric processing is rated at a rapid 0.3 seconds, providing instant mechanical deadbolt retraction upon placing an authorized finger on the scanner. For family members or service personnel utilizing passcodes, the backlit keypad supports permanent, one-time, periodic, and recurring PIN structures alongside an anti-peeping password system. The automated locking mechanism can be set via the mobile app between 0 and 180 seconds, ensuring that the heavy-duty deadbolt pin secures into the strike plate without manual interaction upon departure.

Installation parameters for the DDL242X-1HW specify compatibility with residential door slabs measuring 1-3/8 inches to 1-3/4 inches (38mm to 50mm) thick. Homeowners should verify their door edge thickness prior to purchase, as the upper threshold is slightly narrower than the 2-inch maximum supported by the DDL-241-BK or DDL242X-15HW-L. The motorized latch operates on 8 AA alkaline batteries (not included), requiring a 5-second press of the integrated reset button during primary hardware initialization. This model stands as the definitive choice when your front entrance requires a satin nickel finish, complete handle hardware, and instant fingerprint unlocking.

• Integrated 4200 Series 0.3-second rapid biometric fingerprint scanner
• Supplied with two matching satin nickel door levers and complete latch hardware
• Anti-drill deadbolt housing with illuminated anti-peeping backlit keypad
• Integrated auto-lock timer with customizable range from 0 to 180 seconds
