Yale Z-Wave Smart Lock Comparison: Assure Deadbolts and Levers Analyzed

Best for: Rapid biometric fingerprint entry on deadbolt doors

Pros

• Integrated biometric fingerprint scanner
• Updated ZW3 series module
• DoorSense and back-up key included

Cons

• Higher system complexity
• Listing does not specify legacy hub support

Best for: Maximum pick resistance with key-free touchscreen access

Pros

• 100 percent key-free pick-proof design
• DoorSense sensor included
• Capacitive touchscreen with auto-unlock

Cons

• No physical keyway backup
• Restricted to US and Canada operation

Best for: Tactile keypad fans needing door status tracking

Pros

• Tactile push-button keypad
• DoorSense sensor included
• Yale Access app plus Z-Wave integration

Cons

• Single physical backup key
• Operates only in US and Canada

Best for: Homes wanting legacy hubs and key backup

Pros

• Dual physical backup keys
• BHMA Grade 2 certified deadbolt
• Direct hub control without Yale app

Cons

• Requires 1-3/4 inch minimum door thickness
• Lacks DoorSense open-close sensing

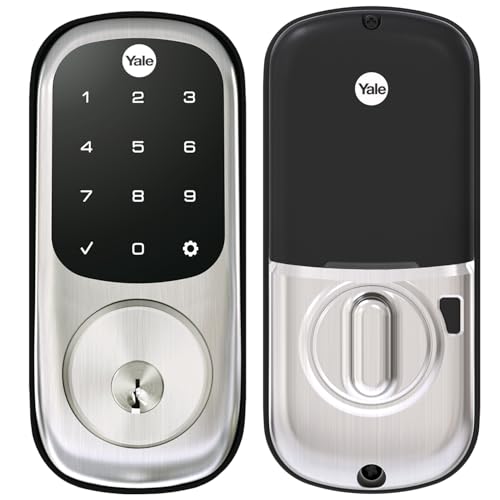

The Yale Assure Lock Touchscreen Deadbolt (model YRD226-ZW2-619) represents a foundational benchmark in the Yale Z-Wave lineup. Engineered to replace standard residential deadbolts, this motorized unit mounts directly onto exterior doors measuring between 1-3/4 inches and 2-1/4 inches in thickness without requiring new mounting holes. Unlike newer generations that incorporate secondary mobile configuration layers, this yale assure lock touchscreen deadbolt is managed strictly through your compatible Z-Wave hub and controller application, eliminating the need to install or maintain a standalone Yale mobile app.

From an architectural standpoint, the YRD226 delivers certified BHMA Grade 2 mechanical security with an exceptionally quiet motorized latch bolt. For users evaluating a yale z-wave deadbolt vs lever configuration, this dedicated deadbolt provides substantial resistance to forced entry on primary perimeters. In contrast to purely digital entry options, this unit includes a traditional keyway cylinder and two physical backup keys, offering a reliable mechanical override if the four AA batteries deplete fully after low-battery alerts trigger on the illuminated keypad.

The capacitive touchscreen display remains dark until touched, awakening with backlit numbers that prevent premature code wear patterns. The lock pairs seamlessly with major platforms including Samsung SmartThings, Ring Alarm, and Wink, with voice capabilities supported through Alexa when routed through an appropriate smart hub bridge. When assessing hardware longevity alongside alternative ecosystems like a schlage bluetooth lock, the YRD226 stands out for its robust metal chassis and lifetime limited mechanical and finish coverage.

• BHMA Grade 2 certified fully motorized deadbolt assembly for quiet, reliable door locking.
• Direct controller pairing with SmartThings, Ring Alarm, and Wink hubs without secondary vendor apps.
• Dual physical mechanical keys included alongside a capacitive backlit touchscreen interface.
• Engineered specifically for standard residential exterior door thicknesses from 1-3/4 inches to 2-1/4 inches.

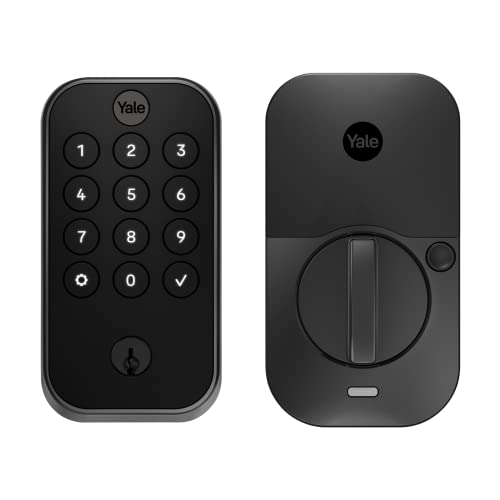

Representing the current evolution of modular hardware, the Yale Assure Lock 2 Keypad Deadbolt (model YRD410-ZW2-BSP) pairs physical push-button feedback with modernized Z-Wave connected intelligence. Finished in Black Suede, this unit includes the Yale Z-Wave Smart Module and integrates directly with the Yale Access app for local Bluetooth programming alongside your primary automation hub. In technical head-to-head analyses like yale yrd226 vs yrd410, the YRD410 introduces native DoorSense technology, a surface-mounted or flush-mounted magnetic sensor that verifies whether the door frame is physically shut before engaging the motorized deadbolt.

This yale assure lock 2 z-wave model is engineered to resolve common operational issues associated with touchscreen interfaces in harsh weather. The raised tactile buttons provide distinct mechanical engagement, making it ideal for low-light situations, extreme cold, or users who prefer tactile verification over glass screens. The package includes one physical backup key, bridging modern connected entry with traditional mechanical access redundancy for front entry applications within the United States and Canada.

Through its dual-connectivity architecture, the YRD410 allows you to generate and share unlimited entry codes via the Yale Access App while simultaneously surfacing status notifications across commercial-grade security panels including ADT, Alarm.com, Qolsys, and Honeywell. Home automation setups utilizing optional Auto-Unlock leverage geofencing routines to retract the deadbolt hands-free upon return, functioning much like an external august lock keypad integration within a unified access topology.

• Tactile push-button keypad delivers positive mechanical actuation in all environmental conditions.
• Includes proprietary Yale DoorSense sensor to detect genuine door closure before triggering Auto-Lock.
• Broad Z-Wave hub compatibility spanning SmartThings, Ring, Wink, ADT, Alarm.com, Qolsys, and Honeywell.
• Hybrid management via Bluetooth using the Yale Access App alongside network-wide Z-Wave commands.

The Yale Assure Lock 2 Deadbolt (model YRD450-ZW2-619) is a dedicated key-free deadbolt tailored for complete pick-proof perimeter security. Finished in Satin Nickel, this unit eliminates the traditional mechanical keyway entirely. By doing away with the cylinder plug and tumblers, the YRD450 completely neutralizes standard mechanical intrusion methods such as cylinder bumping, picking tools, and unauthorized physical key duplication, delivering a streamlined exterior profile on standard residential doors.

Operating as a pure digital interface, the YRD450 uses a backlit capacitive touchscreen that remains sleek and inactive until engaged by palm contact. Integrated with the included Z-Wave smart module and DoorSense hardware, this deadbolt monitors latch state and physical door alignment. When the door swings closed, DoorSense signals the motorized drive to engage Auto-Lock instantly or after an operator-defined delay, ensuring the perimeter remains secure without relying on manual key turns.

The lock allows property owners to manage credentials dynamically, distributing unlimited time-sensitive codes via the Yale Access app while operating in tandem with major Z-Wave platforms such as SmartThings, Alarm.com, and Ring Alarm. If the four AA internal batteries expire unexpectedly, the key-free housing features external contacts for temporary power override, maintaining continuous access availability without compromising its cylinder-free security architecture.

• Key-free exterior hardware eliminates lock picking, key bumping, and physical key management entirely.
• Capacitive touchscreen with uniform backlighting wakes instantly on touch for quick credential entry.
• DoorSense magnetic monitoring prevents the motorized bolt from deploying while the door remains ajar.
• Integrated Z-Wave module supports widespread ecosystem pairing across ADT, Qolsys, Ring, and SmartThings.

Bringing high-speed biometric authentication to the platform, the Yale Assure Lock 2 Touch Deadbolt (model YRD410-F-ZW3-619) integrates a capacitive fingerprint scanner directly into the keypad assembly. Recognized as the flagship yale assure lock 2 touch fingerprint iteration, this lock utilizes the updated ZW3 module designation for streamlined communication with modern network controllers like Samsung SmartThings and Hubitat. The biometric scanner reads print topography rapidly, eliminating the need to punch keypad codes or retrieve mobile devices during high-traffic entry routines.

Hardware versatility is a key design aspect of the YRD410-F series. In addition to the biometric sensor, the exterior faceplate incorporates an illuminated touch keypad and a discreet physical cylinder supplied with a backup override key. This tri-credential arrangement—fingerprint, PIN code, and mechanical key—provides multi-layered redundancy suitable for diverse household members, visiting guests, and service personnel requiring trackable exterior access.

Like its Assure Lock 2 counterparts, the Touch model includes DoorSense hardware to monitor closure parameters, an integrated battery health indicator, and customizable Auto-Lock routines. Network management permits users to receive push alerts upon specific user entries, track ingress history through their Z-Wave automation system, and execute remote lock-down procedures across integrated Z-Wave home automation networks.

• Integrated biometric fingerprint sensor provides rapid, one-touch keyless door unlocking.
• Advanced ZW3 wireless module architecture engineered for responsive hub pairing with SmartThings and Hubitat.
• Tri-mode credential verification supporting biometrics, backlit passcode entry, and manual backup keys.
• Includes DoorSense hardware and automated relock configurations to prevent accidental perimeter gaps.

Best for: Single-bore doors needing touchscreen and voice setup

Pros

• Integrated handle for single-hole prep
• Voice-guided menu setup
• Dual physical backup keys

Cons

• Fits thinner doors up to 1-3/4 inch only
• No integrated DoorSense functionality

Addressing doors that lack a secondary deadbolt preparation, the Yale Assure Lever Entry Door Lock (model YRL226-ZW2-619) combines keyless electronic access with an integrated exterior handle and interior latch. This touchscreen lever assembly is engineered specifically for single-bore doors measuring 1-3/8 inches to 1-3/4 inches thick, making it an ideal choice for side entry doors, garage access portals, home offices, and basements. Rather than operating a separate deadbolt throw, the internal electronics govern the cylindrical latch mechanism directly.

The YRL226 features an interactive capacitive touchscreen equipped with interactive voice guidance. This feature walks administrators through system programming, code additions, and parameter adjustments directly from the lock hardware without consulting printed manuals. Like other first-generation Assure hardware, this yale assure lever z-wave model pairs directly to your Z-Wave controller—such as SmartThings, Ring Alarm, or Wink—without running an auxiliary Yale application layer.

Constructed with Grade 2 certified mechanical components, this lever lock delivers substantial physical resistance while accommodating standard residential latch cross-bores. The unit includes two physical keys for manual bypass, a reversible handling lever for left- or right-swinging doors, and full integration capability with voice control platforms like Alexa through compatible Z-Wave home gateways.

• Single-bore lever form factor secures doors lacking a secondary deadbolt prep using a Grade 2 latch.
• Integrated voice-assisted setup guides users through code creation and lock parameter configuration.
• Direct-to-hub Z-Wave pairing operates cleanly without requiring a secondary smartphone application.
• Includes two physical mechanical keys and accommodates standard thin-to-medium door thicknesses up to 1-3/4 inches.

Best for: Single-hole prep doors needing physical push buttons

Pros

• Backlit physical push-button keypad
• Grade 2 certified latch assembly
• Dual physical backup keys included

Cons

• Lacks voice programming guidance
• Fits maximum 1-3/4 inch door thickness

For applications where tactile feedback is preferred on a single-bore handle assembly, the Yale Security Assure Lever (model YRL216-ZW2-619) provides the same mechanical platform as the YRL226 but substitutes the glass touchscreen with individual backlit push buttons. This design benefits utility entryways, unconditioned garage doors, and workshop environments where users frequently operate the lock while wearing work gloves or dealing with moisture on their hands.

The YRL216 integrates directly into standard 1-3/8-inch to 1-3/4-inch doors using only a standard screwdriver, replacing standard passage or privacy knobs with a connected access control point. Supplied with a Z-Wave smart module, the lock connects to Samsung SmartThings, Ring Alarm, and Wink ecosystems, enabling remote locking, schedule enforcement, and perimeter status checks across third-party smart home dashboards.

Mechanical reliability remains central to the YRL216 design. It features a robust Grade 2 cylindrical lock body, two physical brass backup keys, and an auto-relock feature that snaps the latch into a locked state whenever the lever returns to resting horizontal alignment. For commercial or residential facilities standardizing on Z-Wave mesh protocols, the YRL216 provides a dependable, button-driven alternative to touchscreen hardware.

• Individual backlit physical push buttons ensure error-free code entry with gloved or wet hands.
• Installs on standard single-bore doors between 1-3/8 inches and 1-3/4 inches thick without extra drilling.
• Grade 2 certified latching hardware backed by a lifetime limited finish and mechanical warranty.
• Connects directly to major Z-Wave mesh hubs including Ring Alarm and SmartThings for centralized automation.
