LG Refrigerator Ice Maker Replacement Breakdown: Part Numbers & Pin Connectors

Best for: Flex tray freezers needing ten-pin harnesses

Pros

• 10-pin harness included
• 12-cube flex tray
• Built-in on/off switch
• Half-year manufacturer warranty

Cons

• Aftermarket replacement rather than factory OEM
• Limited to specific flex tray models

The Upgraded AEQ72909603 AEQ72909602 Ice Maker Assembly is an aftermarket replacement module manufactured by LUOWENWEN designed for bottom-freezer and French door cabinets that rely on a mechanical twisting harvest mechanism. Built around a 12-cube flex tray, this assembly integrates a 10-pin harness, a localized on/off rocker switch, an internal sensing thermistor, and a mechanical ice level shut-off bar. The complete kit functions at standard 120-volt household appliance power and delivers an operating batch capacity of 1.7 pounds. The unit is designed for direct cabinet mounting without requiring wire splicing or auxiliary electrical adapters.

From a diagnostic standpoint, identifying whether this module matches your appliance requires verifying that your current freezer chassis utilizes the designated 10-pin interface. This unit directly supersedes previous part revisions including AEQ72909603, AEQ72909602, and AEQ72909601, while matching appliance industry cross-reference codes 2216335, AH3617225, EA3617225, AP5325806, and PS3617225. Verifying harness configurations in this manner is just as critical as diagnosing harness continuity on a kitchenaid ice maker when tracking down electrical communication faults between the main logic board and the freezer compartment.

This module suits homeowners and appliance technicians repairing older bottom-mount French door units that utilize mechanical flex tray ejection rather than heated mold-sweep fingers. The assembly is fabricated from food-grade plastic polymers designed to withstand sub-zero temperature swings without stress cracking. The listing notes that LUOWENWEN backs this unit with a half-year warranty. If your refrigerator utilizes a secondary 3-wire or 6-wire modular plug rather than a unified 10-pin harness, this assembly will not dock with your cabinet harness, requiring a transition to dedicated OEM alternatives.

• Integrated 12-cube flex tray mechanism with calibrated twist harvest action
• Direct-fit 10-pin wiring harness eliminating the need for wiring splices or pin adapters
• Comprehensive hardware package including integrated thermistor, shut-off bail arm, and manual power switch
• Engineered cross-compatibility for reference numbers 2216335, AH3617225, EA3617225, AP5325806, and PS3617225

Best for: Bottom-mount French door units with six-wire plugs

Pros

• Genuine factory OEM assembly
• Six-wire secondary connector
• Wide bottom-mount compatibility
• One-year warranty coverage

Cons

• Incompatible with three-wire harness configurations

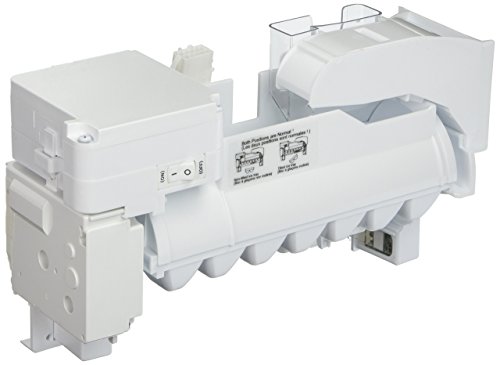

The LG AEQ73110205 Genuine OEM Ice Maker represents the authentic factory equipment standard for a substantial selection of LFX and LMX series French door and bottom-freezer refrigerators. Produced through Geneva – LG parts – APA, this genuine lg oem ice maker assembly is built to precise engineering tolerances to match original cabinet specifications. Weighing 2 pounds, the unit is constructed with a dedicated ice mold, motor-driven harvest sweep assembly, and direct water fill trough. The manufacturer provides a 1-year warranty on this authentic factory component.

The defining technical specification of the aeq73110205 is its secondary wiring interface: this model features a smaller white wire connector housing exactly 6 wires. During operation, this ice maker receives incoming water pulses triggered through the main water inlet valve, retains water within the chilled mold segments until frozen solid, and initiates an automatic mechanical sweep to eject cubes into the storage bucket before triggering a refill. Installing this factory part ensures that internal thermistor resistance values and drive motor current draws align perfectly with the micro-controller programming on the appliance control board.

This unit is specifically tailored for owners of French door refrigerators like the LFX25974ST, LFX28978ST, LFX31925ST, LMX28988ST, and associated Kenmore 795-series bottom-freezer appliances that specifically call for a 6-wire secondary harness. Selecting this original equipment manufacturer component prevents diagnostic communication errors and guarantees that the mounting screw bosses align effortlessly with factory bracket locations. However, if your existing ice maker assembly utilizes a smaller white plug with only 3 wires installed, this unit is electrically incompatible and you must select its sister component instead.

• Genuine factory OEM construction built by Geneva – LG parts – APA for exact appliance restoration
• Secondary wiring terminal engineered specifically with a smaller white connector carrying 6 active wires
• Broad model coverage across premium LFX and LMX bottom-mount French door platforms
• Backed by a formal 1-year manufacturer warranty for verified operational durability

Best for: French door refrigerators requiring three-wire connectors

Pros

• Genuine factory OEM build
• Three-wire secondary connector
• Direct factory specifications

Cons

• Listing does not specify included accessories
• Incompatible with six-wire harness sockets

The LG AEQ73110203 Refrigerator Ice Maker Assembly is an authentic factory-produced replacement designed specifically for refrigerator models utilizing a three-conductor auxiliary electrical link. Manufactured to exact original specifications by Geneva – LG parts – APA, this 2-pound genuine OEM assembly matches the physical dimensions, motor gearing, and mold layout of factory-installed freezer assemblies. It serves as a direct hardware restoration for owners seeking exact factory materials and manufacturer reliability without aftermarket dimensional variance.

The critical diagnostic separator for the aeq73110203 centers on the terminal connector profile: the secondary or smaller wire connector on this specific assembly contains exactly 3 wires. Although the structural casting and exterior plastic casing appear virtually identical to 6-wire alternatives, connecting this 3-wire system to a 6-wire refrigerator socket is physically and electrically impossible. Following diagnostic procedures similar to those used when isolating water valve faults on a maytag ice maker, technicians must inspect the existing cabinet plug inside the freezer ceiling before finalizing part procurement.

This replacement suits consumers seeking authentic factory components who have visually verified that their original ice maker connector contains only 3 active conductors. Choosing an authentic OEM component ensures that the mold thermal conductivity, drive motor cycle timing, and thermistor calibration match the main PCB firmware. If your appliance freezer harness utilizes a 6-wire secondary plug, you must bypass this 3-wire part in favor of the AEQ73110205, as the wire count dictates sensor feedback and motor cycling sequences.

• Authentic OEM design manufactured to strict factory tolerances by Geneva – LG parts – APA
• Secondary wiring harness specifically configured with a 3-wire terminal connector
• Durable 2-pound construction utilizing premium factory mold and motor components
• Engineered to provide immediate plug-and-play fitment into designated French door models

Best for: Side-by-side refrigerators replacing AEQ73209904

Pros

• Direct replacement for AEQ73209904
• Food-grade ABS and AS materials
• 115V operation at 120W

Cons

• Not compatible with AEQ73130004 setups
• Compact 16-ounce batch capacity

The AEQ73130002 Ice Maker Assembly Replacement from JCYPMING is an aftermarket replacement engineered for select side-by-side refrigerators. Operating at 115 volts with a 120-watt power draw, this unit provides a 16-ounce ice production batch capacity. Built with an inner liner and ice mold tray fabricated from food-grade ABS and AS materials, the module is non-toxic, odorless, and compliant with international safety standards to provide clean, directly consumable ice cubes.

Mechanically, this part serves as a direct replacement for discontinued or failed model AEQ73209904, alongside appliance industry cross references 3283890, AP5959515, PS11700763, and EAP11700763. Compatibility is highly specific: it fits a broad selection of side-by-side models including the LSC22991ST, LSXC223 series, and various GM-style cabinets, as well as Kenmore 795-series appliances like the 79551832410 series. The listing explicitly states that this ice maker is not universal, emphasizing that while it shares structural styling with model AEQ73130004, the two parts are not interchangeable due to internal wiring variations.

This unit is ideal for consumers looking to resolve ice production stoppages on older side-by-side refrigerators that originally utilized part number AEQ73209904. The straightforward form factor allows direct installation onto existing cabinet side-wall mounts. However, if your appliance calls for part AEQ73130004 or modern side-by-side parts like AEQ73209906, the plug pin geometry and internal resistance will fail to communicate with the refrigerator logic board, necessitating a dedicated part match.

• Direct-fit mechanical replacement for part AEQ73209904 and cross-references AP5959515 and PS11700763
• Food-grade ABS and AS plastic construction ensuring odorless and sanitary ice formation
• Calibrated electrical rating of 115 volts and 120 watts for standard domestic refrigerator circuits
• Engineered for precise mounting within designated LSC, LSXC, and Kenmore 795-series side-by-side freezers

Best for: Side-by-side units needing dedicated harness pinout

Pros

• Replaces AP6836326 and PS12714360
• 5-pound holding capacity
• 100W energy profile
• Food-grade ABS and AS build

Cons

• Plug style differs from similar-looking units

The AEQ73209906 Refrigerator Ice Maker Assembly Replacement manufactured by MKYPLM is a dedicated aftermarket solution designed for modern side-by-side refrigerators. Operating on standard 120-volt household current with an energy-efficient 100-watt power profile, this module features a substantial rated storage capacity of 3.5 pounds. The internal liner and ice formation tray are constructed from high-grade, food-safe ABS and AS materials that resist mineral scaling and provide hygienic ice generation.

The aeq73209906 serves as a functional replacement for part numbers AP6836326, PS12714360, 4952902, ERP12714360, and PD00054376. It maps directly to numerous side-by-side platforms, such as the LSXC22396D, LSXC22486S, and LSXS26326S series, along with Kenmore models including 79551733811 and 79551839414. The manufacturer includes a critical technical note regarding part selection: while the exterior chassis of the AEQ73209906 looks almost identical to models AEQ73130002 and AEQ73130004, the number and physical styling of the harness plugs across these three units are distinctly different and completely non-interchangeable.

This assembly suits owners of high-capacity side-by-side refrigerators experiencing harvest ejection failures or cracked mold coatings where original part AP6836326 was specified. The design emphasizes DIY accessibility, requiring users to simply disconnect electrical power, shut off the water supply, disconnect the old harness, and remount the new modular unit. If your cabinet wiring calls for the electrical pin configurations of AEQ73130002 or AEQ73130004, purchasing this unit will result in plug mismatch errors during installation.

• High-capacity 3.5-pound ice batch holding design engineered for side-by-side freezer configurations
• Efficient 100-watt power profile operating on standard 120-volt appliance supply
• Replaces industry cross-references AP6836326, PS12714360, 4952902, ERP12714360, and PD00054376
• Food-grade, odorless ABS and AS resin interior ensuring hygienic cube harvesting

Best for: High-capacity side-by-side replacements

Pros

• 4-pound rated batch capacity
• Pre-assembled integrated control box
• Replaces AP5953790 and PS10063167

Cons

• Distinct harness not compatible with AEQ73130002

The AEQ73130004 Refrigerator Ice Maker Assembly Replacement by MKYPLM is a high-yield aftermarket assembly engineered to resolve common freezer failures including harvest cycle stalling, water tray leaks, and mechanical clicking noises. Operating at 120 volts, this heavy-duty module offers a robust rated capacity of 4 pounds. The unit comes fully pre-assembled straight out of the box, integrating the ice mold, an internal control box, and a direct plug-and-play wiring harness.

The aeq73130004 is engineered to meet original manufacturer specifications as a direct alternative for replacement codes AP5953790, PS10063167, 3380789, FIX10063167, and EAP10063167. Listing specifications state product dimensions of 1″D x 1″W x 1″H and reference R134a refrigerant system compatibility. The unit is crafted with food-grade ABS and AS materials to ensure that harvested ice cubes meet strict hygiene and odor-free standards throughout prolonged operation.

This replacement is tailored for users managing larger household ice demands who need an exact match for part AP5953790 across compatible side-by-side models. Its pre-assembled design eliminates the need to transfer fragile thermistors, wire clips, or control boxes from the damaged assembly. However, buyers must note that despite visual chassis similarities, this module cannot replace the AEQ73130002 or AEQ73209906 due to differing wiring pinout layouts.

• Substantial 4-pound rated capacity suited for households requiring high daily ice volume
• Fully integrated pre-assembled module including ice mold, control box, and connection harness
• Direct functional alternative for part codes AP5953790, PS10063167, 3380789, FIX10063167, and EAP10063167
• Food-safe, odor-resistant ABS/AS tray construction for sanitary ice production
