GE Dishwasher Pump Comparison: Part Numbers, Flow Specs & Fit

Best for: OEM factory drain pump replacements

Pros

• Genuine OEM GE component
• Explicit 3600 RPM 28W rating
• Broad cross-reference code coverage

Cons

• Drain cycle evacuation only
• Bare pump without extra clamps

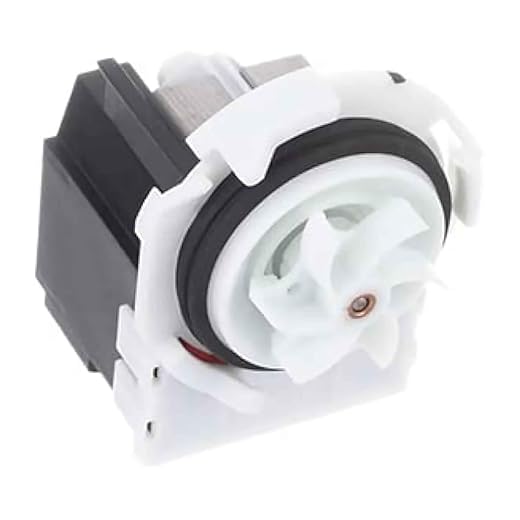

The GE WD19X25461 Dishwasher Drain Pump is a genuine Original Equipment Manufacturer part manufactured directly for GE and Hotpoint dishwashers. Functioning as a dedicated evacuation motor, this unit operates specifically during the drain phase of the wash sequence to clear water from the bottom basin through the check valve and drain hose assembly. Because modern dishwasher control logic monitors drain evacuation speed to prevent cycle timeouts, installing a genuine factory-specified motor ensures impedance and resistance levels align with control board calibration.

Electrically, this assembly is powered by a Johnson Electric E3320 motor rated at 0.45 amps, a 28-watt input profile, and a rotational velocity of 3600 RPM. These precise electrical ratings ensure high torque to rapidly clear waste without overheating during extended pump-out cycles. The physical body measures 4.5 inches long, 4.5 inches wide, and 3.5 inches high, featuring a durable white plastic housing engineered to resist domestic wastewater chemistry. This part officially supersedes and functionally replaces older part number WD19X26143, while carrying engineering production markings including 265D3375G001, P01615001887, 1999-1E30014EU, 3027110180-369, and ID No. 1E30004.

This component suits homeowners and technicians who prefer genuine OEM replacements and need to resolve standing water issues, drainage error codes, or drain impeller lockup. Because it is exclusively an evacuation component, it will not resolve issues concerning weak upper spray arm pressure or poor dish cleaning during the active wash cycle. For DIY installers, ensuring the sump basin is clear of hard glass or food debris is vital before securing this pump into its twist-lock or bracketed base.

• Genuine OEM General Electric replacement part for GE and Hotpoint dishwashers
• Motor specifications rated at 0.45 amps, 28 watts, and 3600 RPM
• Direct functional equivalent superseding legacy part number WD19X26143
• Molded white thermoplastic construction measuring 4.5 by 4.5 by 3.5 inches

Best for: Brushless wash pump repairs with hardware

Pros

• Brushless motor design
• Includes matching hose clamps
• Extensive Cafe and Adora fitment

Cons

• Non-OEM direct replacement
• Operating RPM not listed

The WD26X23258 Cosamatcozon Brushless Motor Circulation Pump is a direct-replacement wash pump assembly engineered to restore fluid delivery to upper and lower spray arms. Operating on a standard 120-volt corded electric connection, this aftermarket pump utilizes a modern brushless motor topology. Brushless motors eliminate physical carbon contact brushes, which mitigates mechanical friction, reduces operating motor drone, and diminishes long-term internal wear during high-temperature sanitizing cycles.

This circulation pump kit is specifically manufactured to replace GE OEM part numbers WD26X23258, WD26X22285, WD26X22518, and WD26X22826, alongside standard distributor cross-references 4466766, AP6039424, PS11772000, and EAP11772000. While chemical film from poorly dissolving tablets like seventh generation dishwasher detergent packs can coat sensor surfaces over time, mechanical pump degradation produces telltale mechanical symptoms such as dry grinding sounds, unwashed dishware in the upper rack, or circulating fluid leaks at the motor neck. The Cosamatcozon package ships as a comprehensive 7-piece service kit, bundling the primary black composite pump assembly alongside matching hose clamps to guarantee secure fluid line reattachment without requiring secondary hardware sourcing.

Suiting appliance owners seeking an accessible, DIY-friendly circulation fix, this unit fits popular GE platforms including the Adora Series (such as DDT595SBL2TS) and multiple GE Cafe models (including CDT706, CDT805, CDT835, and CDT836 lines). It replaces failing motors that hum without turning or fail to generate adequate spray pressure, though buyers who insist strictly on OEM branded factory parts will prefer GE-labeled alternatives.

• Features a quiet, low-friction 120-volt brushless motor design
• Replaces factory part numbers WD26X23258, WD26X22285, WD26X22518, and WD26X22826
• Includes matching hose clamps for immediate mechanical installation
• Engineered for broad compatibility across GE Adora and Cafe series models

Best for: Modern GE and Cafe wash systems

Pros

• Genuine OEM GE kit
• Multi-brand appliance support
• Direct AP7209083 replacement

Cons

• RPM and wattage not detailed
• Omits installation clamps

The GE WD19X32518 Dishwasher Circulation Pump is an authentic OEM wash pump kit manufactured by GE Appliances. Designed specifically as a primary fluid circulator, this OEM assembly draws filtered wash water from the lower sump collector and pressurizes it through the internal distribution manifolds to spin the wash arms. Installing an authentic factory wash motor ensures that hydraulic head pressure matches the internal fluid volume curves designed by GE engineering teams across diverse washing cycles.

This circulator assembly is designed to resolve common circulation system failures, including continuous humming sounds, metallic grinding noises, internal sump fluid weeping, or cycles that stall prematurely when the main control board fails to detect wash water movement. The WD19X32518 part number represents a modernized factory revision that directly replaces superseded OEM part numbers AP7209083, WD19X31498, and WD19X31499. The listing specifies its application across multiple brands under the GE Appliances umbrella, providing fitment across GE, Hotpoint, Haier, Monogram, and Cafe dishwashers that call for this specific rev code.

This pump is the correct choice for consumers and professional technicians working on newer generation GE appliance architectures where precise electronic feedback to the main control board is required. While the listing does not specify detailed rotational speed or wattage metrics, its genuine OEM origin guarantees exact compliance with original factory tolerances. It cedes ground to other offerings for users searching specifically for the older WD26X platform or those requiring included hose clamps, as this OEM kit includes the core circulator assembly.

• Authentic OEM wash pump kit engineered by GE Appliances
• Replaces legacy part numbers AP7209083, WD19X31498, and WD19X31499
• Direct fit for GE, Hotpoint, Haier, Monogram, and Cafe dishwasher platforms
• Engineered to resolve wash cycle stalling, weak spray pressure, and motor humming

Best for: Heavyweight factory circulation pump restoration

Pros

• Authentic OEM GE assembly
• Replaces older WD26X series numbers
• Robust 2.92 pound build

Cons

• Lacks accessory clamps
• Operating RPM not specified

The Ge WD26X23258 Dishwasher Circulation Pump Assembly is a genuine Original Equipment Manufacturer core wash pump designed to power the spray distribution system within GE dishwashers. Built to direct GE factory specifications, this pump functions as the heart of the washing apparatus, taking heated wash water from the sump and discharging it with sufficient force to rotate the spray wands and lift food soil from dishes. As an authentic OEM component, it ensures precise electrical compatibility with factory control boards without triggering false tachometer or low-flow error codes.

The assembly weighs 2.92 pounds and has exterior dimensions measuring 14.48 inches in length, 6.1 inches in width, and 6.26 inches in height. This substantial unit is built with factory-grade seals and motor windings designed to withstand daily thermal cycling and aggressive detergent chemistry. The part number WD26X23258 replaces older engineering revisions WD26X22285, WD26X22518, and WD26X22826, serving as the official factory replacement when older revisions suffer bearing seizure, winding degradation, or fluid seal rupture.

This OEM ge dishwasher wash pump suits homeowners who demand an exact factory replacement to restore their appliance to baseline performance. Because it is a bare OEM pump assembly, it does not include extra universal hardware or supplemental hose clamps, requiring installers to reuse existing factory mounting brackets and hardware. For shoppers facing a non-draining appliance, this ge dishwasher pump motor will not resolve the issue, as it handles solely active wash water circulation rather than basin drainage.

• Genuine Original Equipment Manufacturer circulation pump from General Electric
• Direct replacement for superseded part numbers WD26X22285, WD26X22518, and WD26X22826
• Heavy-duty 2.92-pound construction engineered for long-term commercial reliability
• Maintains factory-calibrated hydraulic pressure across upper and lower spray arms

Best for: High-efficiency BLDC circulation replacement

Pros

• Verified 2900 RPM 56W BLDC motor
• Stainless steel and polymer build
• Includes clamps and instructions

Cons

• Aftermarket brand manufacture
• Only fits listed 120V models

The WD26X23258 Brushless Circulation Pump for GE, manufactured by SPORDA, is an aftermarket replacement engineered for high thermal endurance and hydraulic efficiency. At its core, the unit incorporates a 120V AC Brushless DC (BLDC) motor that operates at an input power of 56 watts and delivers a calibrated shaft speed of 2900 RPM. This brushless design operates cooler and consumes less electrical energy than traditional shaded-pole induction motors, preventing thermal overload shutdowns during intensive sanitize cycles.

The pump housing is constructed using a combination of stainless steel components and high-density polymer, designed specifically to resist harsh detergent chemicals, hard water minerals, and structural fatigue from daily vibration. Reliable circulation ensures that detergent agents like standard 7th generation dishwasher powder dissolve and distribute evenly across every rack rather than settling at the bottom of the tub. The assembly measures 7.89 inches long, 1.63 inches wide, and 3.94 inches high, weighing 2.3 pounds. It directly cross-references OEM part numbers WD26X22285, WD26X22826, WD26X22518, 4466766, AP6039424, PS11772000, and EAP11772000.

SPORDA packages this replacement unit with installation instructions and new inlet and outlet clamps, promoting an estimated 20-minute DIY replacement process using standard hand tools. This pump fits numerous GE platforms, including models such as GDT535PGJ2WW, PDF820SSJ4SS, ADT521PGJ0WS, GDF650SMJ4ES, and PDT825SSJ2SS. It represents an ideal choice for buyers who want clearly verified electrical parameters and included hardware, though purists seeking an authentic GE factory-boxed component should choose the OEM GE assembly.

• High-efficiency 120V AC brushless motor rated at 56 watts and 2900 RPM
• Composite housing built with stainless steel and high-density polymer materials
• Ships with installation instructions and dedicated inlet/outlet clamps
• Directly cross-references part numbers WD26X23258, WD26X22285, WD26X22518, and AP6039424

Best for: Targeted drain repairs with warranty

Pros

• Includes 1 year warranty
• Replaces WD19X31178 and AP6973150
• Stainless steel material designation

Cons

• Non-OEM component
• Motor RPM not specified

The WD19X25461 WD19X31178 for GE Drain Pump, supplied by Amesias, is a dedicated aftermarket wastewater evacuation pump engineered to fit select GE, Haier, and Hotpoint dishwashers. Operating on standard 120V AC household current, this compact drain pump engages during pump-out intervals to expel dirty water through the drain loop. Because drain pump impellers can easily be fouled by broken glassware, bones, or seeds, replacing a seized pump motor restores complete drainage and terminates standing water faults.

This model is configured as a direct functional replacement for OEM part numbers WD19X25461, WD19X31178, WD19X26143, and AP6973150. Much like maintaining a clean sump and monitoring debris screens on a frigidaire dishwasher filter, proper wastewater discharge requires an uncompromised impeller housing. The Amesias unit features a black housing with stainless steel structural elements, designed to mount directly to matching sump ports on compatible appliance series. The listing emphasizes that this pump is not universal, requiring explicit verification against appliance model plates such as CDT800 and CDT805 series before purchase.

A notable feature of this aftermarket drain pump is its listed 1-year manufacturer warranty, offering added protection against premature component failure. It suits homeowners who need to replace a burned-out or jammed drain motor on a compatible GE or Hotpoint machine. However, it will not resolve poor washing results or lack of water pressure at the upper spray wands, as circulation tasks are managed by an entirely separate wash pump assembly.

• Dedicated 120V AC drain pump assembly for GE, Haier, and Hotpoint dishwashers
• Direct replacement for part numbers WD19X25461, WD19X31178, WD19X26143, and AP6973150
• Constructed with stainless steel material accents and black polymer body
• Backed by a listed 1-year manufacturer warranty
