Troy-Bilt Pressure Washer Hardware Breakdown: Compatibility & Specs

Best for: Leaking 2.2 GPM RMW axial pumps

Pros

• Precision 2.2 GPM axial fit
• Durable welded aluminum casting
• Pre-assembled manifold head

Cons

• Incompatible with 2.3+ GPM pumps
• Does not include internal drive

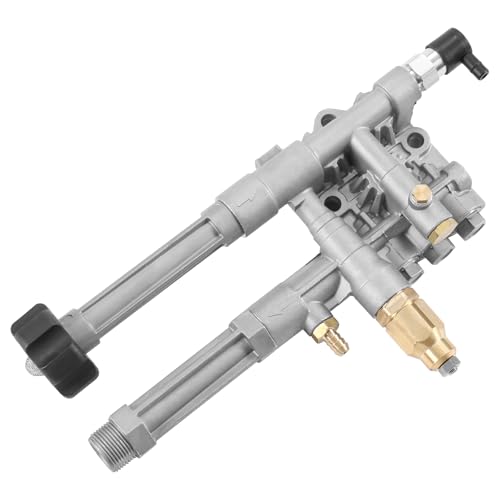

The JDMSPEED AR42940 Pressure Washer Pump Head is an aftermarket replacement manifold casting engineered to restore hydraulic pressure on axial cam pressure washers without requiring a complete pump purchase. In cold storage or during thermal shock, trapped water can freeze and fracture the aluminum manifold, or cavitation can pit the internal valve seats. This kit directly replaces part numbers AR42940, AR42518, and AR3061, serving as a focused remedy for manifold leakage, inadequate water pressure, and unloader chamber failures. Because the piston drive assembly, swash plate, and oil reservoir often remain undamaged, swapping out the head assembly saves the functional mechanical drive.

This pump head is manufactured from durable aluminum alloy selected for high surface hardness, lightweight operation, high temperature resistance, and continuous corrosion resistance. The casting utilizes advanced welding technology to eliminate porosity and reinforce the structural sealing performance of the high-pressure chambers. In terms of operational parameters, this component is rated for a maximum pressure of 2800 PSI and a maximum fluid delivery rate of 2.2 GPM. Fitment is strictly calibrated for Troy-Bilt axial power washer models including RMW2.2G24, RMW2G24, RMW2G20, RMW2.2G20D, RMW2G23B, RMW2G25, and SRMW2.2G26. When conducting a dewalt 3600 psi pump review or working with high-output wash systems, matching volume ratings is vital; this unit is explicitly incompatible with SRMW 2.3, 2.4, and 2.5 GPM pumps such as SRMW2.3G28, SRMW2.4G28, or SRMW2.5G28, where excessive fluid volume can crack the casting.

This replacement manifold suits hands-on equipment owners who possess a healthy 2.2 GPM pump engine and drive assembly but need to eliminate external water spraying and low-pressure output caused by cracked or worn pump heads. It provides an efficient mechanical solution by directly targeting the fluid delivery end of the washer. However, it gives way to a complete pump assembly if your unit has suffered internal bearing seizure, bent pistons, or crankcase oil contamination, and it yields to dedicated connector kits when the manifold casting itself is structurally intact.

• Replaces manufacturer part numbers AR42940, AR42518, and AR3061
• Rated for maximum operating limits of 2800 PSI and 2.2 GPM flow
• Constructed from corrosion-resistant, high-hardness welded aluminum alloy
• Engineered specifically for Troy-Bilt RMW2.2G24 and compatible 2.2 GPM pump models

Best for: Fixing stripped or leaking manifold connectors

Pros

• EZ Grip garden hose connector
• Integrated water inlet mesh filter
• Dual O-rings included

Cons

• Limited to 190634GS 201497GS pumps
• Tubes only no pump body

The The ROP Shop Pressure Washer Pump inlet and outlet tube set is a specialized replacement plumbing assembly designed for Troy-Bilt pump bodies bearing part numbers 190634GS and 201497GS. High-pressure pumps rely on specialized threaded connector extensions to bridge the gap between the pump manifold and external water hoses. Over seasons of use, standard brass garden hose fittings can cross-thread the soft aluminum inlet, or intense hose vibration can strip the high-pressure discharge port. Instead of replacing an entire functional pump or manifold assembly, this component set replaces the critical intake and outlet ports to re-establish leak-free water transfer.

Manufactured from durable aluminum, this two-piece gray hardware kit provides precise interface threading. The water inlet tube features a standard 3/4-inch Garden Hose Thread (GHT) connection equipped with an integrated EZ Grip collar, pre-installed water filter screen, and sealing O-ring to prevent debris ingress into the internal check valves. The high-pressure water outlet tube measures 1.8 inches in length with a 22-millimeter outside diameter and standard M22 external threads, complete with its own sealing O-ring. High-pressure delivery components must maintain leak-free junctions, much like the precision couplings evaluated in a dewalt car washer gun technical overview, ensuring system pressure reaches the wand rather than spraying out at the pump base.

This hardware kit is designed specifically for owners whose Troy-Bilt pressure washers suffer from damaged garden hose connections, cracked outlet nipples, or persistent connection leaks while the internal pump maintains strong operating pressure. It eliminates the need for expensive structural replacements when only the port junctions have degraded. However, this tube set gives way to complete manifold heads if the internal pump chambers are leaking, and gives way to full pump assemblies if the drive mechanism has sustained mechanical breakdown.

• Direct fitment replacement for Troy-Bilt part numbers 190634GS and 201497GS
• Inlet tube features 3/4-inch GHT connection with EZ Grip collar and filter screen
• Outlet tube features durable 22mm M22 metric threading with pre-installed O-ring
• Constructed from solid machined gray aluminum for long-term corrosion resistance

Best for: Complete 3000 PSI pump overhauls

Pros

• Corrosion resistant brass head
• Up to 3000 PSI capacity
• Includes thermal release valve
• Built-in chemical injector

Cons

• Heavier 7.7-pound assembly
• Model-specific 020208 fitment

The Troy-Bilt 020208 020208-0 020208-01 Pump 3000 is a heavy-duty, complete replacement pump assembly engineered for high-performance Troy-Bilt pressure washer units. Designed specifically to restore machines carrying revision codes 20208, 020208, 020208-0, and 020208-01, this complete unit eliminates the troubleshooting guesswork associated with individual valve or seal failures. When an engine runs smoothly but the pressure pump suffers from internal bearing wear, broken plunger springs, or cracked internal fluid passages, replacing the entire pump assembly provides a fresh mechanical foundation backed by original engineering standards.

Constructed with a premium brass pump head and a black housing, this assembly delivers a significant upgrade in material durability over standard aluminum manifolds. The brass cylinder head withstands higher operating stresses, resisting chemical degradation and microscopic cavitation wear. The pump generates an operating output range between 2800 and 3000 PSI, supporting a standard fluid flow rate of 2.4 GPM with a maximum factory rating of 2.5 GPM. The listing specifies corded electric power source compatibility, an overall weight of 7.7 pounds, and model number 4336551515. Crucially, the unit integrates a factory-installed thermal release valve that automatically vents scalding water during prolonged bypass periods, alongside an integrated chemical injector siphon for downstream soap application.

This complete brass pump suits equipment owners who need a turnkey mechanical replacement to restore high-pressure cleaning capability to compatible Troy-Bilt power washers. It is the proper choice when existing pump components have suffered total internal breakdown, metal contamination, or severe freeze damage throughout the crankcase. Because it represents a full assembly replacement, it eliminates the labor of disassembling plungers and check valves. However, it gives way to modular kits like the AR42940 head or ROP Shop port tubes for users working with 2.2 GPM axial cam models or minor connector thread damage.

• Compatible with Troy-Bilt pressure washer model numbers 20208, 020208, 020208-0, and 020208-01
• Delivers 2800 to 3000 PSI operating pressure with 2.4 to 2.5 GPM flow capacity
• Heavy-duty commercial brass manifold head construction weighing 7.7 pounds
• Equipped with built-in thermal release valve and integrated chemical injector
