Sunex Hex & Allen Impact Socket Sets: Drive Size, Length, and Spec Breakdown

Best for: Mechanics working in tight engine bay clearances

Pros

• Solid one-piece Cr-Mo construction
• Low profile stubby clearance
• Dual roll stamped and laser markings

Cons

• Limited to 3/8-inch drive anvil
• No extended reach capability

The Sunex 3646 is an engineered 16-piece low-profile 3/8-inch drive kit configured specifically for severe spatial constraints where traditional two-piece socket bits cannot physically clear surrounding obstructions. Unlike standard hex sockets that press a separate bit into a socket base, this set uses a solid one-piece construction forged directly from Cr-Mo alloy steel. By eliminating the multi-piece junction, the tool eliminates standard failure points while maintaining a minimal height profile. This makes it ideal for mechanics working inside cramped engine bays, steering linkages, and suspension pockets where standard drivers collide with chassis rails.

To preserve fastener integrity, each driver incorporates a radius corner design that directs rotational driving forces against the sturdy flat walls of the hex fastener rather than the fragile corners. This mechanical configuration minimizes corner rounding and premature driver slippage under high breakaway torque. The set meets rigorous ANSI standards and features dual size markings, pairing high-visibility laser etching with roll-stamped impressions that resist chemical wear. The 16-piece collection splits evenly between fractional sizes from 1/4 inch to 3/4 inch and metric sizes from 6mm to 19mm, packaged in a heavy-duty blow-molded case weighing 2.3 pounds. While ideal for restricted clearances alongside standard sunex impact sockets, it gives way to dedicated 1/2-inch drive sets when high-torque chassis fasteners require maximum rotational force.

• Solid one-piece Cr-Mo steel construction eliminates weak points and joint failure.
• Low-profile stubby design delivers direct access to confined fasteners.
• Radius corner design drives fastener flats to reduce corner rounding.
• Dual size markings include both laser etching and permanent roll stamping.

Best for: Multi-make technicians needing exhaustive bit variety

Pros

• Comprehensive 84-piece multi-profile assortment
• Includes stubby mid and long lengths
• Black phosphate corrosion resistance

Cons

• Heavier carrying case at 10.4 pounds
• Lacks 1/2-inch drive high torque sizes

The Sunex 3569 3 8″ Dr. Master provides an expansive 84-piece collection designed for fleet technicians, European vehicle specialists, and industrial facilities requiring complete bit geometry coverage on a 3/8-inch drive platform. Moving far beyond standard hex fasteners, this master set integrates standard hex, star, tamperproof star, external star, and stubby triple square bit sockets. Having stubby, mid, and long shaft lengths within a single system allows technicians to adjust tool reach according to surrounding mechanical obstructions without resorting to stacked adapters.

Every socket in this comprehensive set is forged from high-grade Cr-Mo alloy steel and coated with a protective black phosphate finish to resist shop chemicals and oxidation. Hi-viz laser etching allows rapid identification across the partitioned storage tray, which keeps all 84 components organized despite a substantial 10.4-pound total weight. Backed by a lifetime warranty covering all impact sockets without exclusions, this set integrates seamlessly with a standard sunnex 3/8 impact socket set for routine service. However, technicians working regularly on heavy-duty commercial truck suspension components will find the 3/8-inch drive anvil limiting, requiring dedicated 1/2-inch drivers for extreme breakaway torque.

• Extensive 84-piece master collection covering hex, star, tamperproof star, external star, and triple square bits.
• Multiple profile depths featuring stubby, mid, and long bit lengths.
• Cr-Mo alloy steel with a corrosion-resistant black phosphate finish.
• Hi-viz laser etching and heavy-duty blow-molded storage case.

Best for: Automotive technicians servicing heavy metric fasteners

Pros

• Direct 1/2-inch drive impact rating
• Includes 9mm and 16mm sizes
• Vertical serrations bite damaged fasteners

Cons

• Contains no SAE imperial sizes
• Blow-molded case required for organization

The SUNEX TOOLS 2639 1 2-Inch Drive metric set is built specifically for high-torque mechanical operations where 3/8-inch drive bits risk shear failure. Designed to interface directly with 1/2-inch pneumatic and cordless impact wrenches, this 10-piece collection eliminates the rotational flex and energy loss caused by stepping down drive sizes with socket adapters. Forged from Cr-Mo alloy steel, each driver delivers the toughness required to absorb violent hammer blows during stubborn suspension, hub, and caliper bracket bolt extractions.

The listing highlights specialized design elements engineered to remove stripped, rusted, corroded, and stuck screws and bolts, including vertical serrations that bite directly into damaged fastener heads to prevent slipping. It also notes a long-nose design that extends reaching capability inside deep recesses. Sizing spans 6mm, 7mm, 8mm, 9mm, 10mm, 12mm, 14mm, 16mm, 17mm, and 19mm, ensuring critical coverage for specialized European 9mm brake caliper bolts and 16mm steering fasteners. Stored in a heavy-duty blow-molded case, this metric-only set is tailored for import and modern domestic platforms, yielding to the 2638 when heavy imperial fasteners must be serviced.

• Direct 1/2-inch drive interface designed for high-torque impact wrench use.
• 10-piece metric collection spanning 6mm to 19mm, including 9mm and 16mm.
• Cr-Mo alloy steel construction for long operational life under heavy impact shock.
• Vertical serrations bite into damaged fastener heads to avoid slippage.

Best for: Heavy equipment mechanics working on domestic machinery

Pros

• Direct 1/2-inch drive impact transfer
• Complete SAE coverage through 3/4-inch
• Forged Cr-Mo alloy steel build

Cons

• Lacks metric dimensional coverage
• Not suited for narrow clearances

As the fractional counterpart to the metric 2639, the SUNEX TOOLS 2638 1 2-Inch Drive impact hex driver set supplies heavy-duty torsional transfer for domestic machinery, chassis assemblies, and commercial trucks. Coupling directly to 1/2-inch impact anvils, the solid socket base handles continuous high-torque impact cycles without the fatigue failure associated with smaller drive sizes. This direct connection ensures maximum hammer energy transfers straight into stubborn, seized, or thread-locked internal hex fasteners.

Forged from premium Cr-Mo alloy steel, these sockets possess the metallurgical elasticity needed to withstand shock spikes without shattering or deforming the hex drive bit. The set covers 10 primary fractional sizes: 1/4″, 9/32″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, and 3/4″. Including large sizes like 11/16″ and 3/4″ makes this kit indispensable for heavy equipment repair and structural machinery. The set includes a heavy-duty blow-molded storage case for field transport. While essential for domestic SAE maintenance, this specialized set offers no metric coverage and requires pairing with a metric kit for full shop capability.

• Dedicated 1/2-inch square drive interface for maximum impact torque delivery.
• 10-piece SAE fractional coverage ranging from 1/4 inch to 3/4 inch.
• Cr-Mo alloy steel forging engineered for extended durability under impact loads.
• Heavy-duty blow-molded storage case organizes all 10 fractional sizes.

Best for: Mobile mechanics wanting compact dual-standard coverage

Pros

• Dual SAE and metric coverage
• Individual replacement sockets available
• Lightweight 2.3-pound blow-molded case

Cons

• Shared single 5/16-inch and 8mm socket
• Limited to 1/2-inch maximum size

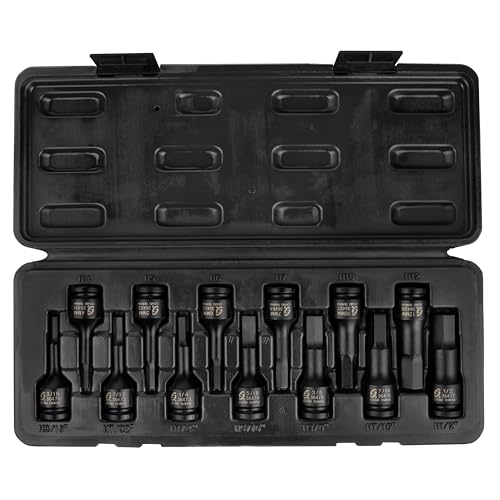

The SUNEX TOOLS 3649 SAE & Metric is a versatile 13-piece 3/8-inch drive impact hex driver set engineered for everyday automotive and general maintenance tasks. Bridging fractional and metric fastener standards in a single organized layout, this kit balances portability with essential dimension coverage. Forged from chrome molybdenum alloy steel, every socket is built for impact-duty service, providing reliable fatigue resistance when paired with cordless ratchets or compact impact drivers.

Sunex optimized the tool count by providing a shared 5/16-inch and 8mm socket, eliminating duplicate hardware while maintaining necessary service capability. The fractional range includes 3/16″, 7/32″, 1/4″, 5/16″ (8mm), 3/8″, 7/16″, and 1/2″, while metric coverage spans 4mm, 5mm, 6mm, 7mm, 10mm, and 12mm. All sockets are available individually from the manufacturer for easy replacement if an individual piece is misplaced. Packed in a compact blow-molded case weighing 2.3 pounds, this sunex impact hex driver set suits mobile diagnostic work, though it gives way to longer 6-inch drivers when fasteners are buried behind obstruction layers.

• 13-piece dual-standard assortment covering 3/16″ to 1/2″ SAE and 4mm to 12mm metric.
• Combined 5/16-inch and 8mm socket optimizes footprint in the carrying case.
• Chrome molybdenum alloy steel construction provides dependable impact strength.
• Sockets available individually for simplified replacement.

Best for: Technicians accessing deeply recessed mechanical fasteners

Pros

• Continuous 6-inch extended shaft reach
• Radiused square drive reduces anvil wear
• Robust 1/2-inch drive format

Cons

• Increased torsional deflection on high torque
• Excessive length for open clearances

The SUNEX TOOLS 2637L 20pc 1 2″ master set is purpose-built to solve reaching limitations on recessed fasteners where standard-length bit sockets and bulky external extensions cannot fit. Featuring continuous 6-inch extra-long shafts mounted on a 1/2-inch square drive base, this 20-piece master set allows technicians to reach deep cylinder head fasteners, intake manifold bolts, and recessed suspension subframe assemblies. The rigid single-piece extended shaft eliminates the play, binding, and torsional energy loss inherent in chaining short sockets to wobbly extensions.

Because extended driver shafts experience significant twisting forces under heavy impact, Sunex manufactures the 2637L from Cr-Mo alloy steel rated specifically for impacting applications. To protect both the driver socket and the impact wrench anvil, the drive end features radiused corners that transfer rotational torque across the anvil flats rather than concentrating force on corners, reducing internal socket wear. The 20-piece collection provides dual-standard reach across fractional sizes from 1/4 inch to 9/32 inch and metric sizes from 6mm to 17mm. Packaged in a heavy-duty blow-molded case weighing 9.6 pounds and backed by a lifetime warranty, this extended set is essential for deep recesses but impractical for confined lateral spaces where stubby drivers excel.

• Extended 6-inch overall bit length provides straight access to deeply recessed fasteners.
• Direct 1/2-inch drive interface built for heavy impact applications.
• Radiused corners on the square drive reduce socket wear and stress concentration.
• Comprehensive 20-piece dual-standard coverage backed by a lifetime warranty.
