Renogy Solar Suitcase Guide: Comparing Specifications, Voltage, and Efficiency

Best for: Direct 12V battery bank off-grid maintenance

Pros

• N-Type 25% efficiency
• Pre-installed 20A PWM controller
• Rigid tempered glass protection
• Adjustable aluminum alloy kickstands

Cons

• Heavy 28.5-pound suitcase weight
• PWM controller lacks MPPT tracking

The Renogy 200W 12V Portable Solar Panels suitcase provides a rigid mobile charging platform designed for direct connection to 12V battery systems. Unlike soft fabric panels, this model pairs low-iron tempered glass with an anti-corrosion aluminum frame and corner protection. Built with N-Type solar cells achieving up to 25% conversion efficiency, the unit maintains solid energy output during low-light conditions. Operating at an amperage capacity of 11.89 amps with a maximum voltage of 21.47 volts, it supplies the direct electrical parameters needed for lead-acid, AGM, and lithium battery maintenance.

The setup integrates adjustable aluminum alloy tilt legs to optimize sun angles throughout the day. It includes a pre-installed waterproof 20A PWM charge controller mounted to the frame, wired through an IP65 junction box and terminating in MC4 connectors and alligator clips. The 4-stage charging profile prevents overcharging while prolonging battery life. Weighing 28.5 pounds with dimensions of 34.25 inches long by 1.57 inches wide by 22.83 inches high, it offers exceptional structural rigidity for rugged camp environments. For an extended technical look at mid-tier charging setups, check our renogy 200w portable solar panel evaluation.

• High-efficiency N-Type solar cells delivering up to 25% conversion efficiency.
• Pre-installed waterproof 20A PWM charge controller with 4-stage charging technology.
• Tempered glass and corrosion-resistant aluminum frame with IP65 junction box.
• Adjustable aluminum alloy kickstands paired with battery alligator clips and MC4 connections.

Best for: High-voltage solar generators and power stations

Pros

• High 400W power generation
• Parallel wiring for shade resilience
• ETFE surface with IP67 rating
• Foldable with included carry case

Cons

• High 67.5V maximum voltage
• Requires external controller for 12V

The Renogy 400W Portable Solar Panel concentrates high solar harvesting potential into a folding ETFE design. Utilizing A+ monocrystalline solar cells with a 23% conversion efficiency, this module produces up to 400 watts of power. It operates at an amperage capacity of 12.1 amps alongside a high maximum voltage rating of 67.5 volts DC. This elevated voltage threshold is engineered specifically for larger portable power stations and high-voltage MPPT controllers, reducing transmission losses across the charging line.

The panel replaces traditional glass with fiberglass reinforced construction, an ETFE surface layer, and an aluminum backsheet for heat dissipation. This hybrid build achieves IP67 waterproofing and hail resistance while maintaining a total weight of 30.2 pounds and folding down to 27.9 by 33.7 by 3.2 inches. An important technical aspect of this renogy 400w portable solar panel is its parallel circuit wiring, which allows unshaded segments to continue generating power if trees or clouds obscure individual cells. Equipped with rust-proof kickstands, IP68 waterproof connectors, and a protective carry case, it serves high-capacity off-grid setups requiring rapid solar replenishment.

• High 400-watt output with a 67.5-volt maximum operating voltage for solar generators.
• Parallel circuit wiring prevents systemic power reduction under partial shading conditions.
• Durable fiberglass core with hail-resistant ETFE coating and heat-dissipating aluminum backsheet.
• Quick 60-second setup supported by rust-proof kickstands and IP68 waterproof connectors.

Best for: Overlanders wanting high wattage at low weight

Pros

• 16BB N-Type 25% efficiency
• Lightweight 18.7-pound folding build
• Parallel circuit shading protection
• Broad temperature range to 185F

Cons

• No integrated charge controller
• Maximum voltage omitted in listing

The Renogy 300W Portable Solar Panel balances high power generation with manageable transport weight. It incorporates 16BB cell architecture using N-Type technology to reach 25% efficiency, surpassing standard 9BB panels that operate around 22.5%. This allows the panel to yield up to 960 watt-hours of daily energy under favorable sunlight. Weighing 18.7 pounds, the design is 17% lighter than standard 300-watt mobile panels, folding into a space-saving footprint of 23.2 by 29.3 by 3.2 inches.

Manufactured with monocrystalline silicon, aluminum, tempered glass, and a polymer backsheet, this renogy 300w portable solar panel earns an IP67 waterproof rating with an operational temperature span between -40°F and 185°F. It utilizes parallel wiring so that intermittent shading does not drop total string efficiency. Supported by rust-proof kickstands and IP68 connectors, this renogy foldable solar panel provides a fast 60-second deployment. With a 3-year warranty on output, materials, and workmanship, it fits overland power demands that exceed 200-watt limits without demanding the bulk of 400-watt hardware.

• Advanced 16BB N-Type cells delivering 25% conversion efficiency and reduced resistance.
• Lightweight 18.7-pound folding frame engineered for compact vehicle storage.
• Parallel circuit wiring maintains consistent power generation during partial shading.
• Rated for extreme weather from -40°F to 185°F with hail-resistant ETFE protection.

Best for: Turnkey 12V battery and power station charging

Pros

• Pre-installed Voyager 20A controller
• 25% N-Type cell conversion
• Fused alligator cable included
• Rigid tempered glass chassis

Cons

• Weighs 28.5 pounds
• Bulkier storage profile than fabric

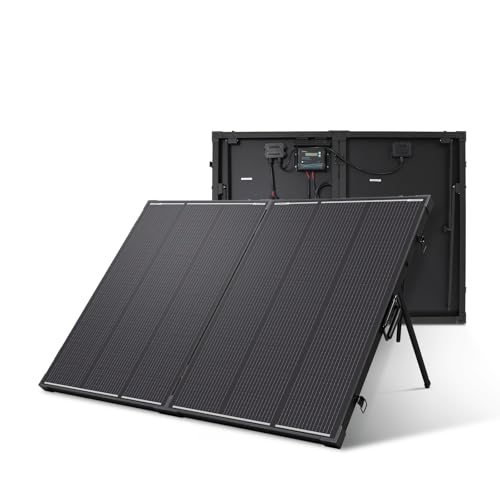

The Renogy 200W Portable Solar Panel Kit provides an all-in-one charging package for users who prefer pre-matched hardware. Built with N-Type cells offering 25% efficiency, the suitcase generates up to 200 watts with an output voltage of 18.65 volts, a maximum voltage of 21.47 volts, and an amperage capacity of 11.89 amps. Its tempered glass front, anti-corrosion aluminum framing, and IP65 junction box ensure resilience against rain, dust, snow, and hail in rugged field conditions.

What distinguishes this renogy 200w portable solar panel kit is the factory-integrated hardware. It includes a pre-installed Renogy Voyager 20A PWM solar charge controller and a solar connector cable terminating in battery alligator clips with an inline 15A fuse. This allows direct connection to 12V battery systems, while also supporting solar generators from Jackery, EcoFlow, Anker, and BLUETTI with matching voltage ratings. Weighing 28.5 pounds and measuring 34.25 by 1.57 by 22.83 inches, this renogy n-type solar suitcase delivers structural longevity and turnkey power management for remote basecamp operations.

• Turnkey kit featuring a pre-installed Voyager 20A PWM controller and fused alligator cable.
• High-efficiency 25% N-Type cells for enhanced energy harvest during low-light conditions.
• Rigid tempered glass and aluminum chassis with adjustable integrated kickstands.
• Broad compatibility across 12V battery chemistries and compatible portable power stations.

Best for: Solo campers needing lightweight portable power

Pros

• Ultra-light 8.9-pound weight
• 25% N-Type 16BB cell efficiency
• Slim 1.6-inch folded profile
• Parallel shading mitigation

Cons

• Modest 100W maximum output
• Requires external regulator for 12V

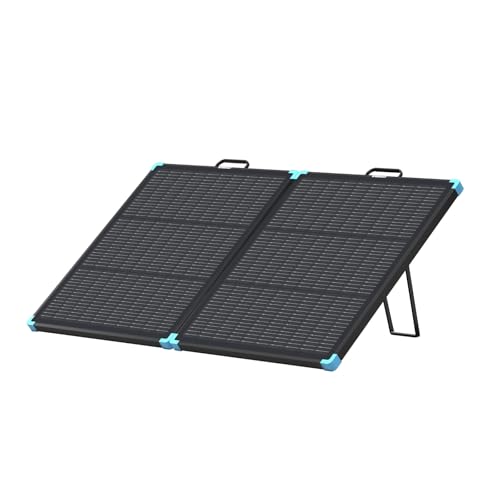

The Renogy 100W Portable Solar Panel addresses mobile power needs where weight and storage space are restricted. Engineered with 16BB N-Type cells achieving 25% conversion efficiency, it delivers up to 320 watt-hours of daily energy, outperforming older 9BB silicon formats. The panel operates at a maximum voltage of 21.6 volts with an amperage capacity of 5.83 amps, generating adequate current to top off small solar power stations and auxiliary emergency battery packs.

Weighing 8.9 pounds and folding down to 20.6 by 24.6 by 1.6 inches, this renogy 100w portable solar panel is 19% lighter than standard portable modules in its category. Its construction incorporates aluminum, monocrystalline silicon, and tempered glass protected by an IP67 waterproof, hail-resistant ETFE film rated for temperatures from -40°F to 185°F. Parallel wiring keeps energy flowing when shaded, and rust-proof kickstands pair with IP68 connectors for rapid setup. Readers comparing entry-level panels can review our renogy 100w solar panel overview to evaluate compact solar options.

• Ultra-lightweight 8.9-pound folding design with a slim 1.6-inch closed profile.
• 16BB N-Type cell technology reaching 25% conversion efficiency for optimal space yield.
• Parallel cell configuration maintains output during localized shading interruptions.
• Broad operational temperature range from -40°F to 185°F with hail-resistant ETFE film.

Best for: Off-grid cabins and multi-kilowatt power stations

Pros

• Massive 800W combined solar power
• Dual 400W deployable suitcases
• Parallel wiring mitigates shading
• Hail-resistant ETFE front film

Cons

• Heavy combined 60.4-pound weight
• High input voltage gear required

The Renogy 800 Watt Solar Panel Suitcase system is built for heavy electrical demands that require extensive solar collection. Consisting of two 400-watt foldable panels, this dual setup delivers a combined 800 watts of rated power. Each panel uses A+ monocrystalline cells with a 23% conversion efficiency, providing high-output generation to recharge high-capacity power stations like the Jackery HomePower 3600 Plus, EcoFlow DELTA Pro, Anker SOLIX C2000 Gen 2, or BLUETTI Elite units.

The combined array weighs 60.4 pounds, with each 400-watt panel weighing 30.2 pounds and folding to 33.7 by 27.95 by 3.2 inches. Fully opened, the deployed dimensions measure 67.4 inches long by 6.4 inches wide by 55.6 inches high. The build features black aluminum framing, fiberglass reinforcement, and hail-resistant ETFE front film providing IP67 weatherproofing. Parallel circuit wiring inside each module limits output degradation from tree or cloud shade. Equipped with MC4 output cables, this renogy 800 watt solar panel suitcase configuration offers substantial charging capacity for off-grid cabins, trailers, and emergency blackout preparedness.

• Dual 400-watt folding panels delivering a combined 800 watts of rated solar input.
• High-efficiency A+ monocrystalline cells protected by hail-resistant ETFE front film.
• Integrated parallel circuitry protects system output from partial shading losses.
• Standard MC4 output cabling designed for high-capacity off-grid power systems.
