Renogy 1000W Inverter Lineup: Technical Spec & Feature Comparison

Best for: Heavy-draw mobile work trucks

Pros

• Includes heavy 1/0AWG cables
• Three standard AC outlets
• Integrated GFCI protection

Cons

• No automatic transfer switch
• Lacks Bluetooth connectivity

Best for: Weekend campers and basic van builds

Pros

• UL 458 safety certified
• Integrated GFCI protection
• Includes wired remote

Cons

• No automatic transfer switch
• No wireless app monitoring

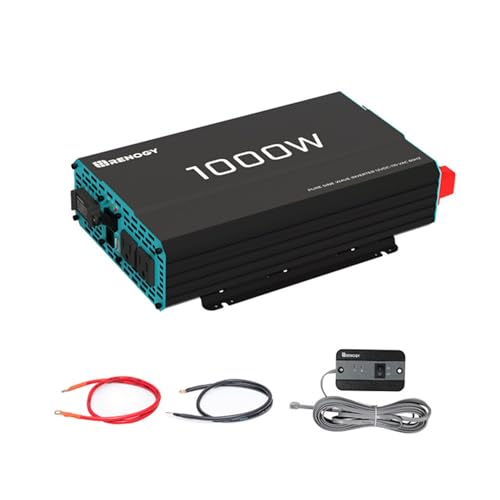

The Renogy Inverter P2 1000W Pure Sine is a dedicated 12V DC to 120V AC off-grid converter designed for trucks, RVs, and compact solar cabins. It provides 1000 watts continuous pure sine wave power and a 2000-watt peak surge allowance at over 90 percent efficiency. Encased in a durable metal housing certified to UL 458 and CSA C22.2 No. 107.1 standards, it uses high-speed cooling fans to regulate internal temperatures under load.

Appliance connectivity includes two AC outlets, a 5V/2.1A USB port, and an AC hardwire terminal block for dedicated sub-circuits. The package includes two 3-foot 4AWG battery cables and a 16.4-foot wired remote controller. Safety is reinforced with built-in GFCI protection and LED indicators for under-voltage, over-voltage, overload, and short-circuit faults.

This model suits campers and DIY builders operating electronics, TVs, and small appliances without shore power failover. It gives way to the PUH and REGO models when automatic transfer switching or wireless app telemetry is needed.

• Delivers 1000W continuous pure sine wave power and 2000W peak surge
• Equipped with two AC outlets, an AC terminal block, and a USB port
• Certified to UL 458 and CSA C22.2 standards with GFCI protection
• Includes a 16.4-foot wired remote controller and two 4AWG DC cables

Best for: Home backup and hybrid RV systems

Pros

• Built-in UPS transfer switch
• Integrated Bluetooth app tracking
• Over 92 percent efficiency

Cons

• Higher cost than base models
• Bulkier terminal interface

The Renogy Inverter PUH combines a 1000-watt pure sine wave converter with an integrated uninterruptible power supply (UPS) transfer switch. Operating at over 92 percent efficiency with a 2000-watt surge rating, this renogy inverter puh 1000w shifts between grid power and battery backup. When shore power is connected, the AC priority switch passes utility current to appliances, instantly shifting back to battery power during outages to keep refrigerators or servers running.

Monitoring is managed via built-in Bluetooth, allowing users to track voltage, load wattage, and error codes through the Renogy App or included remote controller. Output options include three AC outlets, an AC terminal, a DC port, and a USB outlet. Noise stays below 51 decibels via dual heatsinks and a quiet fan, protected by UL, CE, and FCC certified safeguards.

This model serves home backup setups and RVers requiring automatic shore power switching. Readers comparing alternative off-grid systems can check an eco worthy inverter analysis for transfer switch perspectives. For isolated battery setups without shore power, standalone inverters offer simpler wiring.

• Integrated UPS transfer switch shifts between utility and battery power
• Pure sine conversion rated above 92 percent efficiency with 2000W surge
• Built-in Bluetooth pairs with the Renogy App for real-time diagnostics
• Offers three AC outlets, an AC terminal block, a DC port, and a USB outlet

The Renogy Inverter P2 1000W is an upgraded pure sine wave inverter engineered for low-resistance DC current delivery and broad AC connectivity. Delivering 1000 watts continuous 60Hz power and 2000 watts surge capacity at over 90 percent efficiency, the renogy inverter p2 1000w prevents harmonic buzzing in sensitive electronics. Its metal housing carries UL 458 and CSA C22.2 No. 107.1 certifications for impact resistance.

A major distinction is the inclusion of heavy-duty 3-foot 1/0AWG battery cables. This thicker wire gauge reduces line resistance and voltage drop between the battery and inverter under heavy sustained draws. Output connections include three AC outlets, an AC terminal block, and a 5V/2.1A USB port, backed by GFCI protection and LED fault diagnostics.

This inverter suits contractors and mobile work trucks drawing heavy loads from deep-cycle batteries. When building an off-grid system, pairing this unit with a renogy 100w solar panel creates a dependable recharging loop. If wireless monitoring or transfer switching is required, look to the PUH or REGO models.

• Continuous 1000W pure sine wave output with 2000W peak surge rating
• Supplied with heavy 1/0AWG battery cables to reduce continuous voltage drop
• Equipped with three AC outlets, an AC terminal block, and a USB port
• Certified to UL 458 safety standards with integrated GFCI protection

Best for: Off-grid cabins prioritizing battery conservation

Pros

• Ultra-low sub-9.6W idle draw
• Angled 45-degree DIY terminals
• Integrated Bluetooth monitoring

Cons

• Single standard AC outlet
• No GFCI on 1000W tier

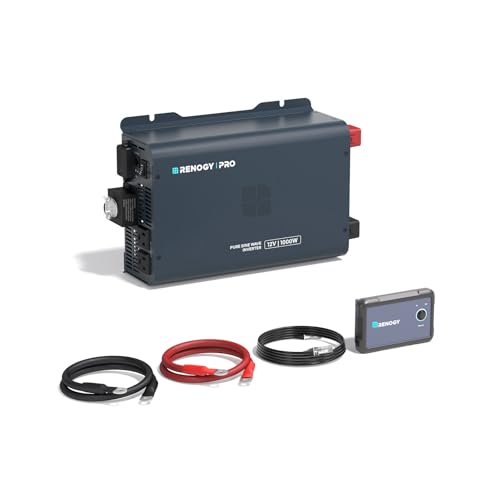

The Renogy Pro 1000W Pure Sine Wave inverter delivers an advanced power architecture engineered for camper vans and tiny homes. Boasting up to 92 percent conversion efficiency, it reduces power loss by up to 13 percent compared to standard inverters. Crucially, this renogy pro 1000w pure sine wave inverter features an ultra-low standby idle consumption rating under 9.6 watts in no-load mode, preventing vampire draw from draining battery banks when appliances are off.

Hardware connectivity features 45-degree tilted DIY AC terminals, simplifying routing of heavy cables into distribution panels. The faceplate also includes a 120V 15A AC receptacle, an 18W USB fast-charging port, and a remote cable. Built-in Bluetooth connects with the Renogy App or Renogy ONE Core for live telemetry. Note that GFCI protection is limited to 2000W and 3000W Pro models.

The Pro model is ideal for off-grid builders prioritizing battery preservation and hardwired panel installs. Builders exploring modular setups can consult an ego power bank review for comparison against portable power units. Those needing automated utility failover should select REGO or PUH transfer models.

• Ultra-low idle draw under 9.6W in no-load standby mode saves battery reserves
• Tilted 45-degree DIY AC terminals simplify wiring into distribution panels
• Integrated Bluetooth syncs with the Renogy App and Renogy ONE Core
• Features a 120V 15A AC outlet, an 18W fast-charging USB port, and remote control

Best for: Rugged overland vehicles and trailers

Pros

• Integrated GFCI shock protection
• 6-layer electronic safety system
• Includes 4AWG battery cables

Cons

• No transfer switch capability
• Lacks wireless Bluetooth

Best for: Critical medical and server backup

Pros

• Rapid 20ms auto transfer switch
• Integrated Bluetooth diagnostics
• Ultra-quiet sub-51dB cooling

Cons

• Transfer current capped at 10A
• No integrated GFCI interrupter

The RENOGY REGO 1000W Pure Sine Wave inverter with transfer switch is built for critical backup power and RV systems. Converting 12V power at over 92 percent efficiency, this renogy rego 1000w pure sine wave inverter supplies 1000 watts continuous power and 2000 watts surge capacity. Its core feature is a 20ms automatic transfer switch with a 10A current rating, which shifts between shore power and battery reserves fast enough to prevent shutdowns on CPAP units, servers, and refrigeration hardware.

Telemetry is handled wirelessly via built-in Bluetooth through the Renogy App, alongside an included wired remote controller. The unit incorporates two AC outlets, an AC terminal block, and a USB port. Safety is certified by UL, CE, and FCC standards with 6-layer protections, while heatsinks and a quiet fan keep noise at or below 51 decibels.

This unit is the top option for overland travelers and home backup systems requiring rapid automatic failover. If your installation never connects to grid shore power, standard standalone inverters offer simpler wiring without unnecessary transfer relays.

• Automatic transfer switch shifts between grid and battery in 20ms at 10A
• Pure sine conversion rated above 92 percent efficiency with 2000W surge
• Built-in Bluetooth supports wireless status tracking in the Renogy App
• Equipped with two AC outlets, an AC terminal block, and quiet 51dB cooling

The standalone RENOGY REGO 1000W Pure Sine Wave inverter is engineered for vehicle cabins and off-grid work trucks where transfer switching is omitted. Delivering 1000 watts continuous 110V/120V AC power and 2000 watts surge capacity at over 90 percent efficiency, this renogy 1000w pure sine wave inverter ensures sensitive tools and electronics run smoothly. Its housing is certified to UL, CE, and FCC standards with 6-layer electronic fault safeguards.

This model integrates a ground-fault circuit interrupter (GFCI) to protect users from shock hazards in mobile environments. The unit includes two AC outlets, an AC terminal block, and a 5V/2.1A USB port, accompanied by two 3-foot 4AWG battery cables and a remote switch. Thermal regulation is maintained by a quiet auto-speed cooling fan operating below 60 decibels.

This REGO model suits work trucks and tool trailers wanting REGO durability and GFCI safety without transfer switch hardware. Field technicians can check a dewalt 1000 watt power inverter review for comparison against jobsite tool inverters. When automated shore power switching or Bluetooth monitoring is required, choose the alternative REGO or PUH models.

• Delivers 1000W continuous pure sine wave power and a 2000W peak surge
• Equipped with integrated GFCI shock protection and 6-layer safeguards
• Features two AC outlets, a hardwire terminal block, and a USB port
• Includes a 16.4-foot remote control and two 3-foot 4AWG battery cables
