POWERTEC Table Saw Sled Kits: Technical Specs & Compatibility Breakdown

The POWERTEC Table Saw Sled w Blade, identified under model number 71703, functions as a comprehensive hardware foundation for woodworkers building a custom crosscut platform. Rather than supplying a pre-formed base, this kit provides the critical sliding and clamping mechanics: a 24-inch universal extruded aluminum T-track, a 19-inch high-density polyethylene miter bar, a 3-inch flip stop, and an integrated clear blade guard. Supplying your own sheet goods allows you to size the sled platform specifically to the table depth of your saw, making it an adaptable choice when configuring setups on tools like a bosch table saw 10 inch where standard pre-dimensioned sleds may overhang excessively.

A primary mechanical advantage of the powertec 71703 sled kit lies in the material selection of the 19-inch miter runner. Machined from high-density polyethylene to dimensions of 3/4-inch width by 3/8-inch thickness, the bar maintains a low coefficient of friction against cast iron while resisting seasonal humidity fluctuations that cause traditional hardwood runners to swell or bind. The included 24-inch universal T-track mounts along the top edge of your shop-built rear fence, accepting standard 1/4-inch hex bolts and 5/16-inch T-bolts. The package includes #6 x 1/2-inch flat head wood screws, 1/4-20 x 1/2-inch hex bolts, and 1/4-20 acorn nuts to complete hardware mounting without supplemental fasteners.

Safety is addressed directly through the inclusion of the polycarbonate blade guard, which suspends over the central kerf exit zone to physically shield the operator’s hands from blade exposure as the sled pushes past the arbor. This kit gives way to turnkey units like the 71403 when a woodworker lacks the shop time to true, laminate, and calibrate a custom MDF base and fence assembly from raw materials.

• Solid extruded aluminum 24-inch universal T-track for top-fence accessory integration
• High-density polyethylene 19-inch runner measuring 3/4-inch wide by 3/8-inch deep
• Heavy-duty 3-inch flip stop designed for repetitive length indexing
• Clear blade safety guard with dedicated mounting hardware included

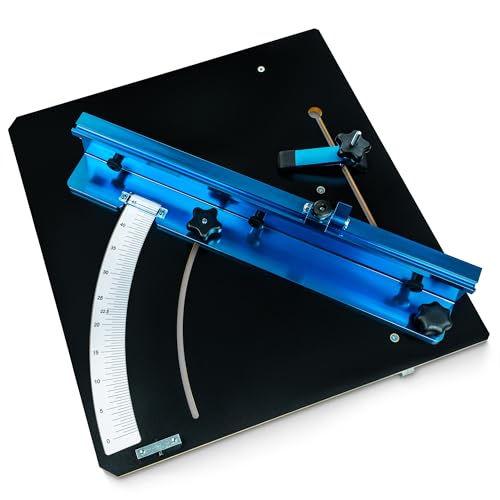

The POWERTEC Table Saw Crosscut Sled, cataloged as the 71403, is an engineered, ready-to-mount crosscut system built specifically for full-sized contractor and cabinet saws. Featuring an overall base dimension of 23-13/16 inches, the platform uses a durable melamine-coated MDF base paired with a heavy-duty extruded aluminum rear fence and an MDF sub-fence face. The underlying steel miter bar is precision-ground to 3/4-inch wide by 3/8-inch deep to mate seamlessly with standard miter slots. Woodworkers comparing factory-built jigs often contrast this design against the rockler table saw crosscut sled to weigh structural fence rigidity against overall platform weight.

Setting up the powertec 71403 crosscut sled creates an immediate zero-clearance cutting reference. On the initial setup pass, the saw blade cuts through the center kerf of the melamine base and sub-fence face, establishing an exact edge that prevents underside fiber tear-out and visibly marks the exact cut line. The mechanical fence includes easy-to-read 1/2-degree angle graduations, an adjustable 90-degree positive stop, and a hairline indicator that simplifies compound or angled joinery. Workpiece stabilization is maintained via an included hold-down clamp that secures lumber against the table surface to prevent kickback and rotational shifting during crosscuts.

To ensure frictionless travel, POWERTEC equips the underside with low-friction wear strips that glide across the saw table. It is critical to note machine requirements: this sled is strictly designed for full-size cabinet saws and stationary contractor platforms possessing standard 3/8-inch deep by 3/4-inch wide miter slots. It is incompatible with lightweight portable or jobsite units featuring undersized, tabbed, or non-standard tracks, where the large 16.1-pound footprint would induce table tipping.

• Factory-assembled 23-13/16-inch melamine-coated MDF base with extruded aluminum fence
• Angle scale featuring 1/2-degree graduations, hairline indicator, and 90-degree stop
• Standard 3/4-inch by 3/8-inch miter runner with low-friction underside wear strips
• Includes adjustable workpiece hold-down clamp and sacrificial MDF sub-fence

Best for: Compact jigs needing precision scales

Pros

• Dual 4-foot measuring tapes
• 3-inch flip fence stop
• Smooth HDPE runner

Cons

• Shorter 12-inch T-track
• Excludes clear blade guard

The POWERTEC 72219 Table Saw Sled Kit is an ultra-compact DIY hardware bundle tailored for woodworkers constructing specialized small-parts sleds, coping jigs, or custom cutoff tables. Weighing just 1.42 pounds, the powertec 72219 sled kit includes a 12-inch universal aluminum T-track, a 19-inch HDPE miter runner, a 3-inch flip stop with a 5/16-inch T-bolt, two 4-foot self-adhesive measuring tapes, and necessary assembly fasteners. This kit is ideal when building a narrow sled dedicated exclusively to square 90-degree trimming of narrow stock, where a 24-inch track would unnecessarily overhang the jig perimeter.

Measurement repeatability represents the standout feature of this package. POWERTEC includes two distinct 4-foot adhesive tape measures: one reading left-to-right and the other reading right-to-left. This allows woodworkers to mount the scale on either side of the blade kerf to accommodate left-tilt or right-tilt blade preferences. The 3-inch flip stop locks firmly into the universal T-track via a 1-inch diameter star knob, allowing quick adjustments along the fence line. The flip arm can be rotated up out of the way when making rough squaring cuts without losing the registered stop position for subsequent workpieces.

The universal T-track features a 23/64-inch wide top opening, making it fully compatible with standard 1/4-inch hex bolts, 1/4-inch T-bolts, and 5/16-inch T-bolts. However, users must note that this track will not accept proprietary 1/4-inch mini T-tracks. The 19-inch HDPE bar delivers the same stable dimensional performance as larger kits, providing reliable glide without lubrication. When broader workpiece support and upper blade protection are mandated, this package concedes to the larger 71703 system.

• Includes dual 4-foot adhesive measuring tapes for left-to-right and right-to-left fence calibration
• Extruded aluminum 12-inch universal T-track optimized for compact jig fences
• 19-inch HDPE miter bar measuring 3/4-inch wide by 3/8-inch thick
• User-configurable 3-inch flip stop with top-locking threaded star knob

Best for: Precision custom fixture runners

Pros

• Rigid extruded aluminum build
• 16 nylon slop-adjustment screws
• Long 30-inch reach

Cons

• Requires mechanical calibration
• Higher friction than raw HDPE

For fabricators building high-precision custom crosscut platforms, panel sleds, or taper jigs from scratch, the POWERTEC Crosscut Sled Miter Bar two-pack (model 71144-P2) offers a structural upgrade over plastic or wooden runners. Each miter bar measures an extended 30 inches in length by 3/4-inch width and 3/8-inch thickness, constructed entirely from precision-extruded aluminum. The extra length provides valuable guidance stability before the cut begins and after the blade exits, preventing yaw and tracking errors during deep panel crosscutting.

The mechanical strength of the powertec 71144-p2 miter bar centers on its lateral adjustment design. While standard solid bars can experience play inside worn or slightly oversized miter slots, POWERTEC incorporates eight tapped 10-32 holes along the side of each bar. The kit includes 16 nylon adjustment set screws that thread into these side locations. By adjusting these nylon screws outward, woodworkers can dial out micro-gaps within the slot down to zero lateral clearance while maintaining a silky sliding stroke without metal-on-metal binding.

Fastening jigs to the bar is straightforward thanks to six countersunk mounting holes spaced 5 inches on center along the top face, complemented by one additional non-countersunk hole. The set supplies twelve #8 x 3/4-inch flat head wood screws to mount baseplates firmly from beneath. This package represents the purest form of diy table saw sled hardware, trading the inclusive fences, tracks, and clamps of complete kits for uncompromising structural straightness and runner adjustability across heavy shop fixtures.

• Dual 30-inch extruded aluminum miter guide bars for heavy-duty fixture construction
• Equipped with eight tapped 10-32 side holes and 16 nylon adjustment screws to eliminate play
• Six top-mounted countersunk holes spaced 5 inches on center for secure base mounting
• Standard 3/4-inch wide by 3/8-inch thick profile compatible with standard saw slots

Best for: Upgrading drill press table capacity

Pros

• Spacious 14 by 24-inch surface
• Laser-etched reversible fence scale
• Sacrificial center insert

Cons

• Not for table saw cutting
• Bulky for compact workbenches

The POWERTEC Drill Press Table Kit (model 71539) serves a unique purpose in the POWERTEC modular jig catalog, operating not as a sliding table saw carriage, but as a high-precision auxiliary worktable for drilling operations. Sized at 14 inches by 24 inches, this table mounts securely over standard cast iron drill press platens measuring 12 inches or larger. Fabricated from thick, laminated wood material, it provides the expanded surface area needed to stabilize long boards and large sheet components that typically tilt or deflect on small factory drill tables.

The worktable features a 24-inch extruded aluminum multi T-track fence fitted with a laser-etched, reversible measuring scale. This allows woodworkers to establish exact hole spacing from either edge of the stock without manual layout marking. The kit includes low-profile T-track hold-down clamps, adjustable flip stops, and rigid L-shaped mounting brackets that lock the fence square across the table’s embedded T-tracks. The central area features a removable, replaceable sacrificial insert that allows continuous through-drilling without damaging the underlying jig or dulling expensive Forstner and brad-point bits.

While sharing the extruded aluminum T-tracks, flip stops, and hardware standards common to POWERTEC table saw sleds, the 71539 cannot be mounted to a table saw arbor or miter slot. Instead, it complements a shop equipped with sleds by providing matching fence-stop repeatability for subsequent joinery boring, doweling, and hardware preparation tasks. Its robust build makes it an essential station upgrade for furniture makers requiring uniform component positioning.

• Large 14-inch by 24-inch laminated work surface designed for drill presses 12 inches or larger
• 24-inch multi T-track aluminum fence featuring a laser-etched reversible scale
• Includes adjustable fence flip stops and heavy-duty hold-down clamps
• Removable sacrificial throat plate insert protects table integrity during through-drilling

Best for: Production box and finger joinery

Pros

• Micro-adjustable pin spacing
• Dual blade and clamp guards
• Standard miter slot guide bar

Cons

• Setup requires test cuts
• Limited to joinery tasks

The POWERTEC Adjustable Box Joints Jig, cataloged under model number 71759, is an advanced joinery sled designed to run on table saws and router tables equipped with standard 3/4-inch by 3/8-inch miter slots. Tailored specifically for cutting interlocking finger joints and traditional box joints, this specialized platform eliminates the tedious trial-and-error shimming associated with shop-made pin jigs. Its heavy aluminum body assembly, MDF sub-fence, and steel guide bar keep joint workpieces perfectly plumb throughout the cutting path.

Precision calibration on the powertec 71759 box joint jig is achieved via a knurled micro-adjustment knob. This knob controls the exact spacing between the fixed and adjustable stop pin plates, allowing operators to dial in snug, gap-free joint interlocks across varying blade kerfs and router bit profiles. The wide backing fence provides ample clamping surface, ensuring workpieces remain held at 90 degrees to the arbor to eliminate joint racking. The package includes an extra expansion disc, an assortment of flat-head Phillips screws, T-bolts, and assembly fasteners.

Operator safety during close-proximity joinery is reinforced through a dual-guard setup. The unit includes both an integrated safety blade guard and an auxiliary clamp guard, keeping hands protected from the spinning cutter during the repetitive indexing passes required for multi-finger corners. When your woodworking scope demands square crosscuts and wide panel separation, a general crosscut sled like the 71403 is necessary; the 71759 remains an indispensable, dedicated joinery tool for box making, drawer production, and cabinetry.

• Micro-adjustable indexing knob for precision control of finger joint spacing and kerf matching
• Wide aluminum fence with replaceable MDF sub-fence provides full workpiece support
• Integrated guide bar calibrated for standard 3/4-inch by 3/8-inch miter slots
• Dual-shield safety system featuring transparent blade guard and dedicated clamp guard
