Narwal Robot Vacuum Comparison: Technical Specs and Hardware Breakdown

Best for: Homes needing maximum suction and track mopping

Pros

• 31,000Pa Hyper Suction
• 5-inch FlowWash track mop
• 12mm automatic mop lift
• Rear dToF LiDAR navigation

Cons

• Rectangular chassis limits tight turns
• Dock requires significant vertical clearance

The NARWAL Freo 20 Edge Robot Vacuum serves as the manufacturer’s flagship track-mopping system, anchored by a motor capable of generating 31,000Pa of Hyper Suction. Unlike traditional circular spinning mops, this machine utilizes an extra-wide 10.5-inch FlowWash track mop that rotates at 80 RPM while exerting a constant 12N of downward force. Clean water is delivered directly to the scrubbing surface via 16 precision spray nozzles, while an integrated internal scraper collects wastewater mid-cycle to prevent dirty water from re-contaminating clean flooring.

Edge cleaning performance is addressed through mechanical extension hardware. The track mop can extend 1.9 inches beyond the robot’s rectangular body, sweeping right against baseboards and chair legs. To prevent hair entanglement, the unit integrates a DualFlow Tangle-Free System that combines an auto-reversing side brush with a floating zero-tangling roller brush rated to channel strands up to 15.7 inches in length directly into the vacuum intake. Floor transitions are managed by an automated 12mm mop lift mechanism, paired with strategic carpet handling options including Boost, Avoid, and Vacuum-Only modes.

This model is ideal for large, multi-surface homes that require industrial-grade suction to pull dense debris from deep carpets while thoroughly scrubbing sticky hard-surface spills. However, users who prefer high-definition visual cameras for optical pet waste identification will find that this platform gives way to the camera-equipped Freo Z Ultra or Flow 2.

• 31,000Pa Hyper Suction motor pulls heavy debris and embedded grit from carpets and hard floors.
• 10.5-inch FlowWash track mop scrub system operates at 80 RPM with 12N downward mechanical force.
• Rear dToF LiDAR navigation system scans up to 150 objects within a 3.74-inch ultra-thin profile.
• Multi-function base station handles 120-day dust storage, warm-air mop drying at 113°F, and pipe flushing.

Best for: Compact living spaces without multi-tank docks

Pros

• Internal dust compression technology
• Zero-tangle certified conical brush
• Tri-laser millimeter obstacle avoidance
• 254-minute extended battery life

Cons

• No automated mop washing station
• Manual water tank refilling

Best for: Balanced multi-surface scrubbing on hardwood and tile

Pros

• Reuleaux triangular spinning mops
• 11,000Pa suction power
• DualFlow tangle-free roller
• 120-day base station capacity

Cons

• Lower suction than newer flagships
• Sponge filter instead of HEPA

The Narwal Freo X10 Pro Robot Vacuum utilizes a classic circular chassis built around Narwal’s patented Reuleaux Triangular Mop architecture. The dual rotating pads exert 8N of downward mechanical pressure, utilizing high-speed spinning action to lift dried food spills and surface grease. To prevent uncleaned margins along perimeter walls, the X10 Pro deploys MopExtend and EdgeSwing behaviors that swing the rear chassis into corner joints and toe-kicks.

Vacuuming duties are driven by an 11,000Pa Hyper Suction motor paired with a DualFlow Tangle-Free roller assembly. This setup actively guides loose pet hair and lint directly into the airflow path without winding around the central axle. Similar to our component observations when analyzing a shark robo vacuum, hair-channeling geometry significantly reduces the frequency of physical maintenance required on the brush bar. When encountering rugs, the integrated carpet sensors trigger a 12mm vertical lift of the mopping assembly to ensure fabric remains dry.

The Freo X10 Pro suits buyers who want an automated rotary mopping platform paired with a self-emptying base station that washes and warms-air dries the mop pads. It yields to the Freo Z10 Turbo or Freo 20 Edge when an application requires more than double the static suction pressure for deep-pile carpet extraction.

• 11,000Pa suction power handles routine household dust, pet dander, and dry spills.
• Reuleaux Triangular spinning mop pads scrub at 8N pressure with EdgeSwing perimeter coverage.
• Automated base station provides dust collection for up to 120 days alongside heated mop drying.
• Carpet detection system engages 12mm mechanical mop retraction to isolate wet pads from pile.

Best for: Pet owners wanting visual AI and endurance

Pros

• Dual-camera VLM AI recognition
• 275-minute maximum battery runtime
• Continuous fresh-water FlowWash scrubbing
• 31,000Pa deep suction

Cons

• Large rectangular footprint
• 3-liter station requires floor space

The NARWAL Flow 2 Robot Vacuum integrates high-output suction with advanced visual AI processing. Generating 31,000Pa of suction, it handles large particulate pickup across hard flooring and carpet surfaces. Its mopping module relies on a FlowWash continuous track system that recycles fresh water in real time, delivering up to seven times more floor contact surface area and fifteen times longer stain contact compared to standard single-pass rotary assemblies.

Navigation and obstacle avoidance are governed by dual onboard optical cameras linked to a Vision-Language Model (VLM) artificial intelligence processor. This visual perception stack identifies everyday obstacles such as charging cables, stray shoes, and pet dishes, adjusting the robot’s perimeter approach in real time. The Flow 2 also features contextual environmental responses, such as automatically lowering operating noise when operating adjacent to sleeping areas or nursery rooms.

With an expansive battery run time rated at up to 275 minutes and an integrated status light bar, the Flow 2 is engineered for sprawling, active homes with children and pets. It gives way to the Freo Z Ultra if your cleaning protocol specifically requires multi-temperature thermal water heating up to 167°F inside the base station for mop sanitization.

• 31,000Pa suction engine combined with a Dual Zero-Tangle roller and extended side brush system.
• Continuous self-cleaning FlowWash track mop maintains an unsoiled contact surface during runs.
• Dual camera VLM artificial intelligence recognizes dynamic household obstacles with precision.
• 275-minute maximum battery endurance supports uninterrupted coverage across large layouts.

Best for: Complex layouts requiring high-heat mop sanitization

Pros

• Adaptive 167°F hot-water mop washing
• Dual HD cameras with AI chip
• Liquid mess vacuum shut-off logic
• True HEPA filtration

Cons

• 12,000Pa suction below top models
• Round body misses square corners

Best for: High-traffic homes needing dynamic re-mopping

Pros

• 25,000Pa suction with seal downforce
• Optical waste-water dirt detection
• Edge-to-edge outward swing arm
• All-in-one automated base station

Cons

• Lacks dual-camera obstacle imaging
• Sponge filtration assembly

The NARWAL Freo Z10 Turbo Robot Vacuum emphasizes pneumatic efficiency and intelligent wash cycles. It features a 25,000Pa motor paired with a downward-pressing suction duct cover. This sealing shroud creates a tighter mechanical seal against the floor, focusing the air volume to lift embedded pet dander and fine grit from hard surfaces and floorboard gaps. Similar to the airflow dynamics observed in a shark vacuum mop robot, concentrating intake airflow prevents static suction loss across varied textures.

Mopping is executed by dual spinning pads that leverage active dirt detection sensors within the base station. By monitoring the turbidity of the returned wastewater, the system identifies whether a zone requires repeated cleaning passes and automatically deploys the robot for secondary scrubs until clean water thresholds are reached. Corner and baseboard maintenance is managed by outward-swinging arm mechanics that extend cleaning elements into narrow recesses.

This model is the ideal choice for households with persistent dining room spills and busy kitchens where automated re-cleaning logic is necessary. For buyers prioritizing track-style rolling mops over circular rotary pads, the Freo 20 Edge represents the appropriate alternative hardware configuration.

• 25,000Pa suction reinforced by a downward-pressing floor seal to concentrate intake airflow.
• Optical dirt detection analyzes wastewater condition to trigger automated re-mopping routines.
• DualFlow Tangle-Free brush mechanics prevent human and animal hair wrapping around axles.
• All-in-one docking station executes dust emptying, pad washing, drying, and tank replenishment.

The NARWAL Freo X Plus Robot Vacuum delivers an alternative hardware approach by eliminating the need for a massive multi-tank docking station. Dust collection is handled directly on board using an internal dust compression system that compacts collected debris into a sealed container. This compression architecture enables up to seven weeks of hands-free operation within a 4.5-liter internal capacity without requiring an active external evacuation motor.

Vacuuming suction is rated at 7,800Pa, supported by a specialized conical brush mounted on a single floating arm. This SGS and TÜV certified zero-tangle configuration slides hair directly off the open tapered end of the roller into the suction stream. Mopping is executed by an onboard 280ml reservoir supplying continuous moisture to a pad exerting 6N of downward force. For mixed-surface homes, an integrated carpet sensor lifts the mopping bracket by 9mm to protect low-pile rugs.

Users transitioning from a standard shark automatic vacuum cleaner robot who want integrated mopping without dedicating substantial floor space to a plumbed or multi-gallon base station will appreciate this compact form factor. However, because it lacks automated pad washing, those seeking true hands-off mopping maintenance should look toward the Freo X10 Pro or Freo Z Ultra.

• Onboard dust compression engine delivers up to seven weeks of storage without an evacuation dock.
• Conical floating roller brush maintains a certified zero-percent hair tangle retention rate.
• Tri-Laser obstacle avoidance sensors pair with LiDAR SLAM 4.0 for millimeter-accurate ranging.
• 9mm automated mop lift disengages wet mopping surfaces during carpet cleaning passes.

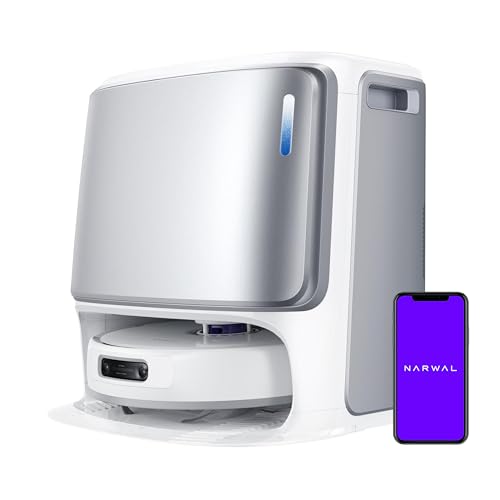

The NARWAL Freo Z Ultra Robot Vacuum represents Narwal’s most sensor-dense hardware platform, incorporating dual 1600×1200 HD RGB cameras driven by dual AI processing chips. This optical system evaluates over 120 domestic object categories in full color, differentiating between solid obstacles, charging cables, and liquid spills. When wet messes are identified, the robot dynamically disengages its vacuum motor to avoid drawing liquid into the dust filter, activating the mops exclusively to wipe the area clean.

The mopping hardware features dual triangular pads rotating at 180 RPM under 1.2 kg (approximately 11.8N) of downforce. In the base station, an adaptive hot-water system washes the pads through graduated temperature zones ranging from 104°F to 140°F to dissolve stubborn starches and fats, finally reaching 167°F for deep thermal sanitization. EdgeSwing mechanics extend the mops into baseboard crevices, while an onboard HEPA filter traps fine particulates before air exhausts into the room.

This model is built for technical users demanding state-of-the-art optical avoidance and lab-grade pad sanitization. It gives way to the Freo 20 Edge or Flow 2 if your priority is raw mechanical airflow rating (31,000Pa versus the Z Ultra’s 12,000Pa) or an extra-wide track mop design.

• Dual 1600×1200 HD cameras and dual processing chips classify over 120 obstacle types.
• Adaptive thermal dock washing cycles water between 104°F and 167°F for deep mop sanitization.
• Dynamic liquid detection disables vacuum suction to prevent fluid ingress into the dustbin.
• Dual triangular spinning mops apply 1.2 kg of mechanical downforce at 180 RPM.
