Kreg Portable Drilling Guide Breakdown: Specifications & Tool Comparison

Best for: Straight 90-degree handheld drilling across standard diameters

Pros

• Six hardened-steel guides
• Self-centering edge alignment
• GripMaxx anti-slip surface
• Six alignment reference marks

Cons

• Fixed 90-degree angle only
• Maximum 0.5-inch capacity

The Kreg Portable Drilling Guide (model KDG-6000) is a dedicated handheld drilling block engineered to eliminate bit drift when drilling freehand holes into timber or metal. Designed for use with standard hand drills featuring chucks up to 1.27 centimeters (1/2 inch), this tool houses six hardened-steel guide bushings arranged in a rigid inline profile. The integrated guide sizes span 1/8-inch, 3/16-inch, 1/4-inch, 5/16-inch, 3/8-inch, and 1/2-inch diameters. By encasing the drill bit along its shank before the tip engages the work surface, the hardened inserts maintain a strict 90-degree axis relative to the flat plane of the workpiece, providing a 0.5-inch maximum drilling capacity in both wood and metal substrates.

Workpiece registration on the KDG-6000 relies on two distinct mechanical features: surface friction and integrated edge indexing. The base of the guide incorporates Kreg’s GripMaxx elastomer surface, which resists rotational torque and prevents the block from sliding when downward drilling pressure is applied. For perimeter work, the tool’s physical housing features a built-in profile that automatically centers over the edges of standard 1/2-inch and 3/4-inch wide boards or sheet stock. Six distinct alignment marks molded into the body correspond directly with the centerlines of each drill guide bushing, enabling quick crosshair referencing against pre-marked pencil lines on flat stock.

This handheld drill alignment jig suits field carpenters, trim installers, and general hobbyists who routinely drill perpendicular holes for dowels, through-bolts, or pilot screws on job sites without access to a stationary machine. It is compact enough to fit inside an apron pocket or standard tool pouch. However, the tool gives way to the Kreg Drill Guide Pro when projects require angled bores, continuous depth stops, or drill bits exceeding 1/2 inch in diameter.

• Six hardened-steel drill guide bushings covering 1/8, 3/16, 1/4, 5/16, 3/8, and 1/2-inch diameters
• Self-centering edge alignment geometry calibrated for 1/2-inch and 3/4-inch dimensional lumber and plywood
• GripMaxx non-slip contact material to stabilize the guide during hand drill startup
• Six molded surface alignment marks for targeting crosshairs and centerlines

Best for: Variable angle drilling and repetitive depth control

Pros

• Stepless -45 to 45 degree tilt
• Integrated keyed 3/8-inch chuck
• Built-in depth stop and dust port
• Base v-groove for round stock

Cons

• Heavier 3.1-pound footprint
• Chuck limited to 3/8-inch shank

The Kreg Drill Guide Pro (model KDG6500) expands beyond fixed 90-degree operations by functioning as an articulated, adjustable angle drill guide. Weighing 3.1 pounds and measuring 2.5 x 6 x 12 inches, this mechanical guide features a rigid base and dual guide columns supporting an integrated arbor assembly. The tool is compatible with 3/18-inch and 1/2-inch cordless drills (as stated in the listing documentation) and comes equipped with a dedicated 3/8-inch capacity keyed chuck. The user mounts their drill drive to the top of the arbor shaft, isolating lateral motor vibration while guiding the cutting tool smoothly along the vertical stroke.

Angular adjustments on the KDG6500 range from -45 degrees to +45 degrees. Unlike traditional alignment jigs that restrict positioning to coarse detents, this model permits quick, stepless adjustments across the entire 90-degree arc without the limitation of positive stops. This capability allows woodworkers to lock the carriage at fractional bevel angles to match specific architectural pitches or compound leg splay. The guide also incorporates an integrated mechanical depth stop collar along the guide rail to guarantee uniform hole depths across repetitive boring tasks, alongside an integrated dust collection port to extract shavings directly at the point of cut.

To secure the base during operations, the tool utilizes non-marring, non-slip feet that grip flat panels without scratching pre-finished surfaces. Furthermore, the base plate features an integrated v-groove channel designed to cradle round dowels, balusters, and pipes, keeping curved stock centered beneath the bit axis. A dedicated top handle assists in stabilizing the carriage against rotational forces. This model is built for fine woodworkers, stair builders, and fabricators needing repeatable depth control and angular boring, but its 3.1-pound footprint makes it bulkier than simple pocket-sized guide blocks.

• Stepless angular adjustability from -45 to +45 degrees without positive stop constraints
• Integrated 3/8-inch capacity keyed chuck driven by cordless drills
• Built-in dust collection port and mechanical depth stop for clean, uniform bores
• Machined base v-groove for stabilizing round stock and non-marring non-slip feet

Best for: Pocket-hole joinery drilling with stepped depth settings

Pros

• Durable high-speed steel construction
• Etched material thickness markings
• Convenient two-pack replacement set
• Universal Kreg jig compatibility

Cons

• Requires compatible pocket jig
• Single stepped profile only

The Kreg Easy-Set Pocket-Hole Drill Bit (model KPHA300-2PACK) is a specialized cutting accessory manufactured specifically for pocket-hole joinery. Packaged as a 2-piece set, each bit is machined from high-speed steel (HSS) to withstand the high thermal and mechanical loads experienced when boring deep, angled pockets into hardwoods and composite boards. The bit measures 9.25 x 1.5 x 0.5 inches with a total pack shipping weight of 1.92 ounces, and it is engineered with a stepped profile featuring a smaller-diameter pilot tip preceding the primary pocket-boring counterbore cutter.

A key engineering feature of the KPHA300 series is the direct etching of material thickness gauge marks directly onto the bit shank. These laser-etched indicators correspond to 1/2-inch, 3/4-inch, and 1-1/2-inch stock dimensions. When paired with an Easy-Set stop collar (the listing notes this bit is compatible with all Kreg jigs and serves as a replacement bit for the 310 and 320 models), the user aligns the collar’s sight window directly over the etched dimension matching the workpiece thickness. This eliminates manual rule measurements and ensures the pilot hole breaks through the edge of the joint mating face at the correct mechanical elevation.

This stepped bit is an essential purchase for cabinetmakers, furniture builders, and tradespeople who regularly build face frames, carcasses, or utility assemblies on a dedicated kreg work bench. Because it features a minimum bore diameter of 0.5 inches on its primary cutting shoulder, it is designed exclusively for pocket-hole jigs and cannot be used as a straight through-hole bit in the KDG-6000 guide block. When standard multi-diameter pilot holes or straight through-bores are needed, standard fractional jobber bits must be paired with Kreg’s multi-guide tooling instead.

• Dual-pack of high-speed steel stepped drill bits engineered for pocket-hole geometry
• Directly etched depth markings corresponding to 1/2-inch, 3/4-inch, and 1-1/2-inch material
• Full backward and forward compatibility across the Kreg pocket jig lineup, including 310 and 320
• Stepped cutting tip produces pilot bore and flat-bottomed pocket counterbore simultaneously

Best for: Cabinet shelving layouts requiring repeatable 1/4-inch spacing

Pros

• Hardened steel guide bushings
• Includes indexing pin and stop collar
• Integral edge registration fence
• Supplied with 4 shelf pins

Cons

• Restricted to 1/4-inch holes
• Single-purpose cabinet tool

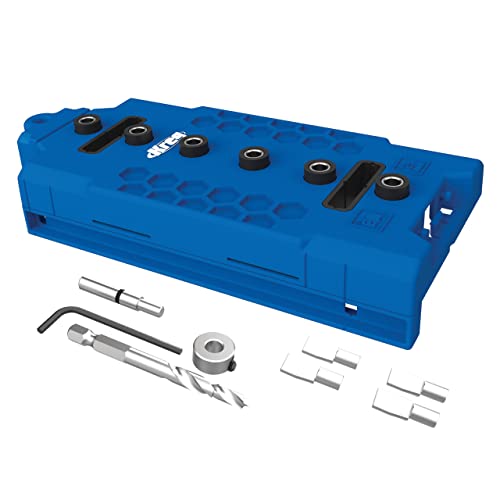

The Kreg Shelf Pin Jig 1 4 (model KMA3225) is an indexed drilling template specifically built to bore parallel arrays of 1/4-inch holes for adjustable shelving brackets in cabinets and furniture. Fabricated with hardened steel guide bushings molded into an impact-resistant blue chassis, the jig ensures that drill bits enter the cabinet interior perfectly square, preventing slanted shelf pins that cause shelves to wobble. The listing identifies a hand-powered operational profile with compatibility extending across both handheld drills and drill presses, with a maximum chuck size and drilling capacity in wood and metal rated at 0.25 inches (1/4 inch).

Precision casework requires uniform horizontal and vertical hole spacing. The KMA3225 achieves this through an edge-aligned design that registers flush against the front or rear edge of a cabinet carcass. To drill continuous rows of shelf pin holes inside tall pantry units or custom storage credenzas—such as outdoor cabinetry built to store accessories near a green mountain pellet grill—the jig includes an indicator pin. Once the first group of holes is bored, inserting the indicator pin through the jig and into an existing hole indexes the entire template along the vertical axis, maintaining identical 32mm spacing across unlimited spans.

Weighing only 1.6 ounces, the Kreg shelf pin jig kma3225 is packaged as a comprehensive operational system. The included components comprise the main jig body, a dedicated 1/4-inch drill bit, an indicator indexing pin, a hex wrench, a stop collar, a set screw, and four 1/4-inch shelf pins to begin immediate assembly. While unmatched for cabinet interior boring, this tool is strictly dedicated to 1/4-inch holes and cannot accommodate larger hardware or angled drilling tasks.

• Hardened steel guide bushings designed exclusively for 1/4-inch shelf pin layouts
• Edge-aligned fence structure for consistent setback registration from carcass faces
• Complete accessory package with 1/4-inch bit, stop collar, indexing pin, hex key, and 4 shelf pins
• Indexed hole extension system utilizing the indicator pin for tall cabinet casework
