Honda Three Wheeler Replacement Parts: Compatibility and Spec Breakdown

Best for: ATC90 ATC110 and ATC125M trike owners

Pros

• 22mm intake inner diameter
• 48mm bolt hole spacing
• Direct bolt-on flange

Cons

• Jet sizes not specified
• Fuel hose not included

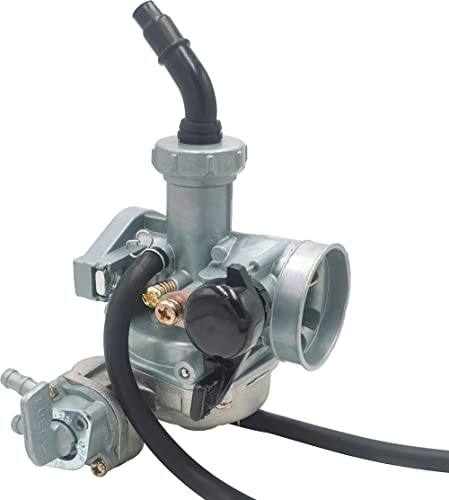

The Carburetor fits Honda ATV 3-Wheeler ATC provides a bolt-on mechanical fuel replacement for mid-displacement vintage Honda trikes. Manufactured under part number AH-084 by MothAr, this assembly solves fuel starvation and persistent leaking caused by worn internal passages. The unit features an intake inner diameter of 22mm, an air filter mount outer diameter of 40mm, and center-to-center bolt hole spacing of 48mm. These dimensions strictly match factory atc 110 carburetor specs, enabling the unit to mount flush against stock intake runners without modification.

This carburetor fits the 1976 to 1978 Honda ATC90, the 1979 to 1985 Honda ATC110, and the 1984 to 1985 Honda ATC125M. Confirming the 48mm atc125m bolt hole spacing guarantees a leak-free manifold seal on these four-stroke engines. The listing notes bolt-on flange installation for all-terrain vehicles, making it a dependable choice when an original carburetor body is corroded beyond repair. However, the listing does not specify internal jetting numbers, so high-altitude tuning may require jet verification.

For vintage honda atc replacement work, this model preserves standard throttle cable and choke clearances. Small engine fuel circuits require spotless passages, a reality familiar to anyone maintaining a honda snow blower after seasonal storage. This unit gives way to smaller options when servicing sub-90cc engines, as its 22mm bore is too large for smaller displacement runners. The package includes the bare carburetor, requiring you to reuse your original mounting nuts and fuel hose.

• Features a 22mm intake inner diameter engineered for mid-displacement trikes
• Standard 48mm bolt hole spacing matches ATC90, ATC110, and ATC125M manifolds
• Equipped with a 40mm air filter mount diameter for stock airbox boots
• Bolt-on flange construction under manufacturer part number AH-084

Best for: ATC200ES and ATC110 ignition repairs

Pros

• Replaces OEM 30500-965-000
• Standard male connector
• Lightweight 0.05 kg build

Cons

• Mounting bolts not included
• Coil resistance unlisted

The Ignition Coil For Honda ATC200ES ATC manufactured by SHAKLAK provides a dependable electrical replacement to cure weak or missing spark. Engineered as an OEM equivalent to part number 30500-965-000, this ignition coil resolves common vintage electrical faults like hard starting, sudden stalling when warm, and high-RPM misfires. Weighing 0.05 kg, the assembly uses a bolt-on mount that grounds directly against the trike frame, delivering factory-correct electrical connection through its male connector terminal.

Fitment covers several vintage Honda trikes, including the 1984 Honda ATC200ES Big Red, 1983 to 1985 Honda ATC200X, 1983 to 1985 Honda ATC200M, and 1981 to 1984 Honda ATC110. The listing also notes cross-compatibility with Yamaha models like the PW80 and Blaster YFS200, the Kawasaki KX65, and Suzuki ALT125 and ALT185 machines. This cross-platform compatibility highlights the standardized ignition pulse characteristics used across Japanese off-road machinery during the 1980s.

Installing this honda atc200es ignition coil is quick, requiring only the male spade connection and secure frame grounding. Reliable ignition output is crucial for engine performance, just as an inconsistent spark ruins the operation of a gas pressure washer honda engine during heavy work. This component yields to carburetor replacements when running troubles originate from fuel delivery rather than loss of spark. The listing does not specify winding resistance or include mounting bolts, so retain your existing hardware.

• Direct OEM equivalent replacement matching reference number 30500-965-000
• Fits 1984 ATC200ES, 1983-1985 ATC200X, 1983-1985 ATC200M, and 1981-1984 ATC110
• Lightweight 0.05 kg bolt-on assembly with a standard male connector
• Broad electrical compatibility across classic Japanese off-road platforms

Best for: ATC 70 owners wanting chrome

Pros

• Polished chrome finish
• Replaces OEM 16100-HB2-033
• Includes brush and clamps

Cons

• Fuel line not included
• Warranty details vague

Best for: Complete ATC 70 fuel overhauls

Pros

• Includes jet cleaner tool
• Replaces OEM 16100-HB2-023
• Includes petcock and fuel line

Cons

• Only fits 70cc engines
• 90-day warranty window

The TRX70 Carburetor Fit for Honda TRX from JDLLONG delivers a comprehensive fuel replacement kit for small-displacement Honda engines. Matching OEM part numbers 16100-HB2-023 and 16100-HB2-033, this carburetor assembly replaces worn original units that suffer from plugged idle passages, stripped threads, or sticking floats. The package comes with the complete carburetor body and housing, ready for immediate installation onto factory 72cc horizontal intake manifolds.

This carburetor fits the 1983, 1984, and 1985 Honda ATC70 three-wheelers, alongside the two-wheel-drive 1986 and 1987 Honda FourTrax 70 TRX70 quads. Confirming trx70 carb kit fitment is straightforward because both machines share the same horizontal four-stroke engine architecture. The package includes one TRX70 carburetor, one fuel shut-off valve, one fuel line hose, one fuel filter, four clamps, and a carbon dirt jet cleaner tool kit with wire gauges.

The bundled jet cleaner and fuel plumbing make this kit ideal for restoring a neglected honda atc 70 carburetor. Aging steel fuel tanks often release rust scale that instantly plugs tiny idle jets unless fresh filters and fuel lines are installed. This JDLLONG kit gives way to the MothAr 22mm unit when working on larger engines, as its venturi is sized solely for 70cc engines. The manufacturer provides a 90-day warranty from purchase against manufacturing defects.

• Direct OEM replacement matching part numbers 16100-HB2-023 and 16100-HB2-033
• Fits 1983-1985 Honda ATC70 trikes and 1986-1987 TRX70 FourTrax quads
• Includes shut-off valve, fuel line hose, inline filter, and four retention clamps
• Supplied with a dedicated carbon dirt jet cleaning tool kit for jet maintenance

The TRX70 Carburetor for Honda TRX 70 distributed under the HZLXQHZL brand name offers another fuel delivery option for vintage 70cc Honda owners. Replacing OEM part numbers 16100-HB2-023 and 16100-HB2-033, this assembly eliminates hard starting, fuel dripping, and lean hesitation. This carburetor features a polished chrome exterior finish, giving the unit a clean visual appearance while providing added resistance against surface corrosion and dirt accumulation.

Fitment matches the 1983 to 1985 Honda ATC70 3-wheeler and the 1986 to 1987 Honda FourTrax 70 TRX70 2×4 ATV. Because these machines share the same cylinder head stud spacing, installation is direct without custom bracket fabrication. The package includes one carburetor, one fuel switch petcock, one inline fuel filter, one cleaning brush, and four hose clamps. The cleaning brush is convenient for scrubbing external linkages and choke pivots during seasonal maintenance.

This model suits restorers seeking a sharp exterior appearance on clean ATC70 builds. While it provides a switch and filter, it yields to the JDLLONG assembly if you need replacement fuel line, as no hose segment is included. The listing specifies a 30-day hassle-free return and replacement policy for quality issues, though warranty description is noted simply as two. For mid-displacement machines like the ATC110, this model is incompatible due to its smaller intake geometry.

• Matches factory replacement part numbers 16100-HB2-023 and 16100-HB2-033
• Engineered for 1983-1985 ATC70 trikes and 1986-1987 TRX70 four-wheelers
• Features a polished chrome exterior finish for corrosion resistance
• Includes fuel switch petcock, inline fuel filter, clean brush, and four clamps
