Bosch Chipping & Demolition Hammers: Technical Spec Breakdown

Best for: Medium concrete drilling and versatile utility chiseling

Pros

• 1 ft-lbs impact energy
• Dual-mode rotary and hammer selector
• 12-position Vario-Lock chisel system

Cons

• Weighs 15.2 pounds
• Lacks active handle vibration isolation

The BOSCH RH540M SDS-max 1-9 16 In. combination hammer delivers 6.1 foot-pounds of impact energy through a 12.0 Amp motor operating on standard 120-volt current. Weighing 15.2 pounds, it establishes an agile power-to-weight baseline for concrete contractors who need dependable percussive performance without excessive physical strain. In rotary mode, the tool operates at speeds between 170 and 340 RPM, while the percussion mechanism produces between 1,200 and 2,750 blows per minute. The listing also identifies an 850-watt maximum power rating and a 12.7-millimeter metal drilling capacity.

A combination dual-mode selector knob allows users to shift between rotary hammer drilling and hammer-only chipping operations. When set to chisel mode, the integrated Vario-Lock mechanism locks the accessory into 12 distinct positions to establish the ideal angle against vertical walls or floors. Preventive maintenance is managed by service minder brushes that halt operation when brush replacement is required, alongside modular internal assemblies designed for efficient servicing. For users balancing light chipping with structural drilling, this tool provides substantial versatility before stepping up to heavier frames.

This model is ideal for commercial remodelers, mechanical trades, and concrete crews performing conduit trenching, anchor bolt drilling, and localized patch removal. While versatile, it yields to dedicated demolition units when extended non-rotary breaking is the sole objective, as dedicated demo hammers run specialized counterbalances that reduce vibration during continuous chipping shifts.

• Motor delivers 6.1 foot-pounds of impact energy at 15.2 pounds operating weight
• Variable-speed performance offering 170 to 340 RPM and 1,200 to 2,750 BPM
• Vario-Lock mechanism locks chisels into 12 distinct angular orientations
• Service minder brushes signal preventative maintenance requirements automatically

Best for: Light surface scaling and overhead masonry tasks

Pros

• Fast 0-5,800 BPM striking cadence
• Three operational modes including hammer-only
• 36-position Vario-Lock chisel adjustments

Cons

• Limited to 2.0 ft-lbs impact
• Restricted to SDS-Plus shank accessories

The BOSCH 11255VSR Bulldog Xtreme SDS-Plus Rotary hammer serves as a lightweight, nimble solution for surface scaling and small-diameter drilling. Powered by a 7.5 Amp motor (with listing specifications also noting 7.08 Amps and 960 watts), this compact tool produces 2.0 foot-pounds of impact energy. Its internal transmission generates a variable speed range of 0 to 1,300 RPM alongside a high-frequency percussive cadence of 0 to 5,800 blows per minute. The high BPM makes it exceptionally fast for cleaning mortar joints, scraping floor tile, and removing thinset without fracturing underlying slabs.

A multi-function mode selector provides three distinct operational settings: rotation-only, rotary hammer, and hammer-only chipping mode. Its SDS-Plus chuck offers automatic bit locking and dust protection, while an advanced Vario-Lock system allows the chisel to be secured in 36 separate positions. The tool features an ergonomic D-handle configuration that improves leverage during horizontal and overhead tasks, supported by a 35-degree cord turret pivot designed to reduce cord stress. Contractors setting up comprehensive interior remodeling operations frequently coordinate their lightweight masonry tools alongside carpentry setups like the bosch 12 miter saw for efficient room turnaround.

This platform directly suits tile setters, electricians, and maintenance technicians handling light chiseling, scaling, and anchor drilling. However, its 2.0 foot-pounds of striking energy cannot replace larger SDS-Max platforms for deep concrete fracturing, giving way to the RH540M or 11321EVS whenever heavy aggregate demolition begins.

• Motor produces 2.0 foot-pounds of impact energy and up to 5,800 BPM
• Three-mode selector supports rotation-only, rotary hammer, and hammer-only tasks
• Vario-Lock system provides 36 distinct locking angles for precise chisel placement
• D-handle design paired with a 35-degree cord turret pivot for improved control

Best for: Dedicated horizontal wall demolition and mortar removal

Pros

• Dedicated demolition hammer at 13.7 pounds
• Integrated mechanism and handle Vibration Control
• Constant Response circuitry with Auto-Max dial

Cons

• No rotary drilling capability
• Not suited for heavy slab breaking

The BOSCH 13.0 Amp 11321EVS SDS-max Demolition hammer is a dedicated percussive breaking tool built without rotary drilling functions. Driven by a 13.0 Amp motor running on 120 volts, it generates 6.1 foot-pounds of impact energy while maintaining a light 13.7-pound total weight. Although the listing records a maximum rotational speed parameter of 480 RPM, the machine functions on jobsites as a dedicated chipping hammer. Its high power-to-weight ratio makes it one of the most effective tools for horizontal wall demolition, masonry window enlargement, and overhead concrete dressing.

Output stability and user protection are managed through integrated Vibration Control and Constant Response circuitry. The dampening system mitigates kinetic feedback within both the primary hammer mechanism and the handle assembly, reducing user fatigue during long duty cycles. Constant Response electronics maintain uniform motor speed under heavy chisel loading, incorporate soft-start capabilities, and provide overload protection. An Auto-Max variable-speed dial automatically ensures maximum power delivery when plugged in, while a 360-degree auxiliary handle and Service Minderlight ensure operational comfort and clear maintenance monitoring.

Masonry restoration contractors, tuckpointers, and waterproofing installers will find this dedicated demolition unit ideal for prolonged chiseling. It surpasses rotary combination tools in chipping comfort due to its dedicated vibration isolation, though operators needing to drill anchor holes must choose a dual-mode tool like the RH540M instead.

• Dedicated demolition hammer delivering 6.1 foot-pounds of impact at 13.7 pounds weight
• Integrated Vibration Control reduces impact shock at the mechanism and handle
• Constant Response circuitry ensures constant speed under load and soft-start control
• Auto-Max variable-speed dial and 360-degree rotating auxiliary handle

Best for: Heavy structural concrete breaking and floor demolition

Pros

• Best-in-class 17.0 ft-lbs impact energy
• In-line design optimizes weight distribution
• Dual-stage Vibration Control technology

Cons

• Heavy 25.1 pounds operating mass
• No rotary drilling functionality

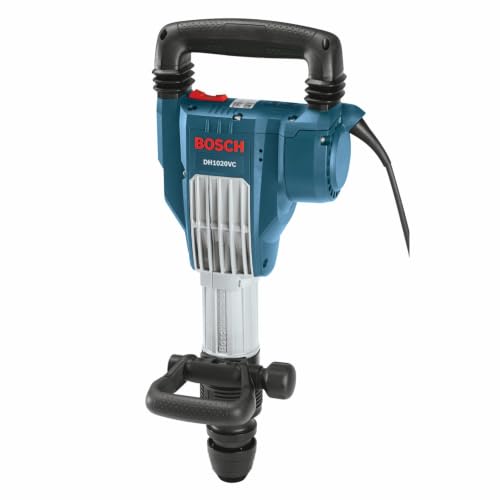

The BOSCH 15.0 Amp DH1020VC SDS-max Demolition hammer delivers the highest single-impact breaking force among the evaluated models. Engineered with a robust 15.0 Amp motor (with listing specifications noting 850 watts of maximum power), it discharges 17.0 foot-pounds of impact energy at a striking rate of 1,700 blows per minute. Built with an in-line body profile measuring 27.5 inches long, 5 inches wide, and 9 inches high, the entire tool weighs 25.1 pounds. This elongated architecture places the motor and striker in direct alignment, optimizing downward and horizontal pushing force during concrete slab removal.

To control the intense kinetic forces generated by 17.0 foot-pounds of impact, the DH1020VC incorporates dual-stage Vibration Control technology in both the internal hammer mechanism and the main grip handle. Constant Response circuitry maintains piston strike velocity when driving bull point bits into high-strength cured concrete, while also preventing premature circuit trips through smooth soft-start management. A variable-speed dial allows the operator to throttle impact force down when working near fragile borders, and the 12-position Vario-Lock collar allows rapid adjustments to flat spade orientation.

This heavy demolition hammer suits foundation specialists, road crews, and demolition contractors cracking thick floor slabs, breaking retaining walls, and driving ground rods. It provides superior impact force compared to combination rotary hammers, though it cannot perform drilling tasks and requires substantial physical stamina during extended horizontal use.

• Delivers 17.0 foot-pounds of impact energy and 1,700 BPM for high-production removal
• In-line chassis layout balances tool weight for downward and horizontal chiseling
• Vibration Control technology dampens percussive shock at the mechanism and handle
• Constant Response circuitry maintains consistent fracturing power under resistance

Best for: Heavy combination core drilling and tough trenching

Pros

• 3 ft-lbs impact energy
• Triple-action vibration reduction system
• Constant Response speed stabilization under load

Cons

• 20-pound tool mass causes fatigue
• Requires large SDS-Max accessories

The BOSCH 14.5 Amp RH850VC SDS-max 1-7 combination hammer provides a heavy-duty balance of large-diameter core drilling and high-output chipping. Powered by a 14.5-amp motor (with listing specifications recording 13.5 Amps, 850 watts, and 12.7 Nm of maximum torque), this 20-pound unit generates 9.3 foot-pounds of impact energy. Its electro-pneumatic impact assembly operates at a rotational speed of 305 RPM. This mechanical design delivers drilling and chiseling productivity close to legacy 2-inch class machines while reducing overall tool weight by roughly 25 percent.

Advanced dampening is achieved through a multi-tier vibration reduction system comprising an extended internal air cushion, a tuned mass damper, and a decoupled main handle. These components work collectively to mitigate mechanical vibrations before they reach the operator’s hands. The dual-mode selector switch facilitates immediate shifts between rotary hammering and hammer-only demolition, while Constant Response electronics stabilize speed under load and provide overload protection. When tackling comprehensive commercial construction jobs, project managers frequently evaluate their entire drilling fleet alongside dedicated bosch hammer drills to establish appropriate tooling tiers across varied site tasks.

Commercial general contractors, structural concrete installers, and utility crews will benefit from the RH850VC when their work regularly alternates between boring large penetrations and chiseling high-density concrete. While exceptionally capable, contractors requiring maximum single-impact demolition without drilling will achieve faster fracturing rates with the dedicated DH1020VC.

• Produces 9.3 foot-pounds of impact energy in a balanced 20-pound operating chassis
• Triple-action vibration reduction system includes tuned mass damper and decoupled grip
• Constant Response circuitry delivers smooth soft starts and steady operational speed
• Dual-mode selector enables swift switching between rotary hammering and chipping

Best for: Maximum combination drilling capacity and heavy chipping

Pros

• 1 ft-lbs impact with Turbo Power
• 2-inch solid bit drilling capacity
• Comprehensive Vibration Control technology

Cons

• Approaches 27 pounds overall weight
• Lower 220 RPM drilling speed

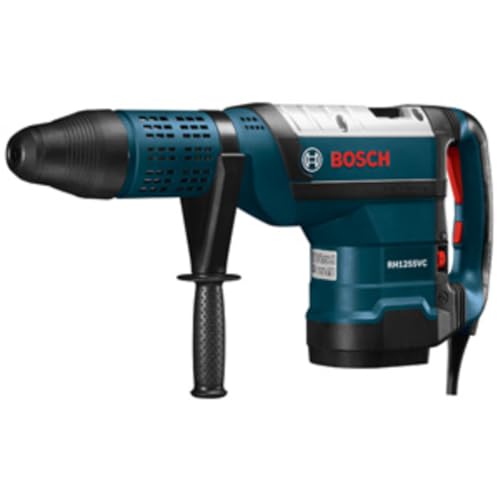

The BOSCH RH1255VC SDS-max 2 In. Combination hammer represents the most powerful combination rotary hammer in this technical assessment. Operating on a 15.0 Amp motor rated at 120 volts (with listing specifications noting 850 watts and 14.1 ft-lb torque), this tool generates 14.1 foot-pounds of impact energy while weighing under 27 pounds. It features a rotational speed of 220 RPM and supports a 2-inch maximum chuck size along with a 2-inch wood drilling capacity. A distinctive feature is its Turbo Power mode, which directs additional electrical energy to the striking mechanism when the tool is switched to hammer-only mode, boosting chiseling throughput.

Managing the immense mechanical output of this 2-inch class machine requires comprehensive vibration management. Integrated Vibration Control dampens shock at both the drive mechanism and the rear handle to reduce upper-body strain during full-day chipping operations. Constant Response electronics maintain consistent hammer blows during deep penetration in reinforced concrete while offering smooth soft starts for accurate bit alignment. For precise chiseling angles, the Vario-Lock positioning system allows the user to rotate and lock the chisel securely. On complex jobsites requiring both heavy foundation work and structural wood preparation, trade crews often stage heavy rotary units alongside a stationary bosch table saw 10 inch to support simultaneous job phases.

Heavy industrial contractors, bridge repair specialists, and commercial foundation teams requiring large-diameter core boring alongside heavy chipping will find the RH1255VC ideal. For operations focused exclusively on concrete demolition without drilling requirements, the dedicated DH1020VC provides higher impact force (17.0 ft-lbs) at a slightly lower tool weight.

• Delivers 14.1 foot-pounds of impact energy with Turbo Power mode boost in hammer mode
• High-capacity 15.0 Amp motor engineered for 2-inch solid SDS-Max drilling
• Comprehensive Vibration Control system mitigates fatigue in mechanism and handle
• Constant Response circuitry maintains constant percussion speed under heavy resistance
