Aqara Zigbee Hub and Ecosystem Breakdown: Technical Specs Compared

Best for: Edge automation and PoE smart home backbones

Pros

• PoE and dual-band Wi-Fi networking
• 8GB encrypted storage for local automations
• Matter Controller and Thread Border Router

Cons

• Larger footprint than compact stick hubs
• Lacks an integrated audio alarm speaker

The Aqara Smart Home Hub M3 serves as the primary edge controller in Aqara hardware architecture. Built to eliminate cloud round-trips, the M3 operates as an Edge Hub that migrates multi-device automations to local network execution. Measuring 4.13 by 4.13 by 1.41 inches in a black enclosure, the unit features 8GB of end-to-end encrypted storage for device configuration data, state tables, and system logs. The device contains no microphones or cameras, reinforcing hardware-level privacy.

Network connectivity is anchored by an aqara hub poe zigbee interface, allowing network engineers to supply power and data over a single RJ45 Ethernet run. When wired runs are unavailable, the M3 connects via dual-band 2.4 GHz and 5 GHz Wi-Fi backed by WPA3 security protocols, with a secondary USB-C port available for power banks or mini-UPS backup. Compared to third-party coordinators like a standard sonoff zigbee hub, the M3 centralizes secondary Aqara hubs beneath its local management layer.

Beyond standard Zigbee coordination, the aqara smart home hub m3 functions as a Thread Border Router, Matter Controller, and Matter Bridge. It bridges Aqara Zigbee signals into Apple HomeKit, Amazon Alexa, Google Home, Samsung SmartThings, and Home Assistant. A built-in 360-degree infrared blaster tracks traditional remote signals to update air conditioner states in real time. The M3 fits whole-home architectures requiring centralized computing, giving way to the M100 for secondary single-room installations.

• Functions as an Edge Hub with 8GB end-to-end encrypted local storage
• Integrated Matter Controller, Thread Border Router, and Matter Bridge architecture
• 360-degree infrared transceiver featuring command learning and AC state detection

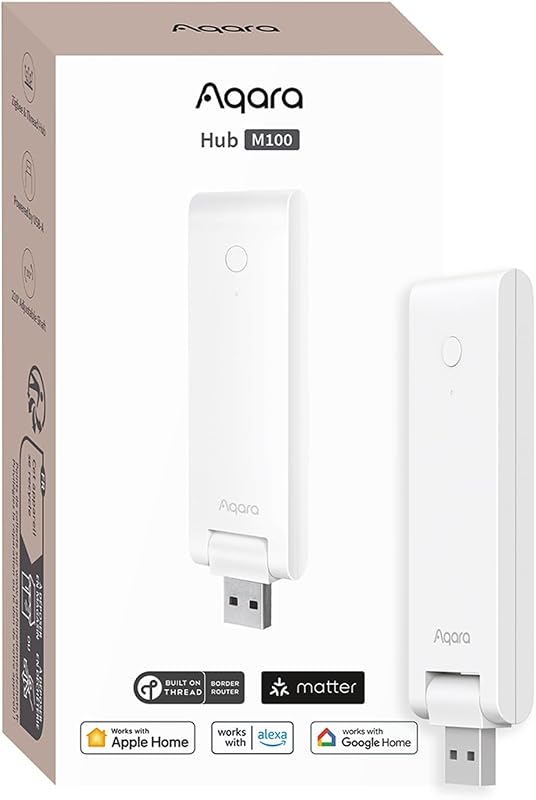

The Aqara Smart Hub M100 for Home is an ultra-compact coordinator built for flexible physical placement. Engineered around a universal USB-A interface, the M100 draws power directly from wall chargers, router auxiliary ports, or PCs. Its mechanical housing includes a 210-degree adjustable pivot shaft, enabling flush mounting against vertical outlets or within tight networking enclosures. The internal hardware runs on a specialized Linux operating system optimized for local device state processing.

The wireless interface utilizes single-band 2.4 GHz Wi-Fi 6 (802.11ax) protected by WPA3 security, providing up to 600 Mbps data transfer bandwidth for crowded RF environments. Serving as an aqara matter bridge zigbee adapter, the M100 supports up to 20 Aqara Zigbee devices and 20 Thread devices. Those assessing compact hardware against a multi-brand tuya zigbee hub should note that the M100 translates proprietary Aqara telemetry directly into external Matter-compatible controllers.

The M100 provides millisecond-level local automation response times for paired Zigbee and Thread endpoints without requiring active internet access. However, the manufacturer listing explicitly states that the M100 does not pair with third-party Zigbee devices. It is an optimal choice for secondary rooms or compact apartments, yielding to the M3 or M200 when PoE connections, 5 GHz Wi-Fi bands, or acoustic speakers are required.

• 210-degree rotating USB-A power shaft for flexible outlet integration
• 2.4 GHz Wi-Fi 6 radio supporting WPA3 network encryption
• Multi-protocol bridge supporting up to 20 Aqara Zigbee and 20 Thread devices
• Local automation engine delivering millisecond execution latencies

The Aqara Smart Hub M200 provides centralized automation coordination with an integrated audio subsystem. Acting as a Matter Controller, Thread Border Router, and Matter Bridge, the M200 incorporates third-party Matter devices into the Aqara ecosystem while bridging Zigbee peripherals out to primary platforms.

A distinctive feature of the aqara smart hub m200 is its built-in acoustic speaker. This hardware component functions as a local siren for security trips, a multi-tone doorbell receiver, a wake-up alarm, and a playback engine for custom audio notifications. When paired with detection peripherals like an aqara motion sensor, the M200 acts as an autonomous alarm station that sounds without external network connectivity.

The hub also integrates a 360-degree infrared transceiver equipped with remote signal learning, permitting local automation of split-system air conditioners and legacy media equipment. Zigbee and Matter automations execute locally with millisecond response times. While the M3 remains superior for multi-hub edge clustering, the M200 is an exceptional standalone controller for setups requiring integrated acoustic alerts.

• Integrated multi-purpose speaker for security alarms, chimes, and voice alerts
• Matter Controller, Thread Border Router, and Matter Bridge capabilities
• 360-degree infrared controller with remote learning and AC status feedback

Best for: Perimeter entry tracking and automated triggers

Pros

• 86-inch wide magnetic contact gap
• 400-inch direct RF transmission range
• Compact 46.5-gram low-profile enclosure

Cons

• Requires separate Aqara hub coordinator
• Lacks native SmartThings compatibility

The Aqara Zigbee Door and Window Sensor (model MCCGQ11LM, supplied in a 3-pack) is a contact monitoring peripheral designed for ingress surveillance and automation triggers. Encased in a low-profile white housing measuring 1.61 by 0.86 by 0.43 inches, the sensor weighs 46.5 grams. The magnetic reed mechanism tolerates an operating gap of up to 0.86 inches between the transmitter and magnet, facilitating installation on non-flush doors, casement window frames, drawers, and security gates.

The sensor transmits digital binary states over Zigbee to an Aqara coordinator located within a 400-inch (approximately 10-meter) operational radius. To ensure signal delivery, the parent hub and local router must share the same local area network. When triggered, the sensor issues an immediate state change that commands the coordinator to sound local sirens or initiate automated lighting routines across the premises.

Regarding aqara zigbee sensor compatibility, the contact sensor interfaces natively with Apple HomeKit, Amazon Alexa, and IFTTT through the parent Aqara hub. The listing notes that direct pairing with SmartThings is not supported on this model. For users determining which aqara zigbee hub to buy, pairing this contact sensor with an M3 or M200 ensures immediate local alarm execution without cloud latency.

• Permissible magnetic contact gap of up to 0.86 inches for irregular frames
• 400-inch wireless transmission proximity to parent Aqara Zigbee coordinator
• Direct digital output driving instant local siren triggers and scene states
• Certified compatibility with Apple HomeKit, Amazon Alexa, and IFTTT

Best for: Sub-millimeter liquid detection and flood prevention

Pros

• Detects liquid levels down to 0.5 mm
• IP67 waterproof and rust-proof casing
• Triggers immediate 55 dB hub alarms

Cons

• Incompatible with third-party Zigbee hubs
• Restricted to 10-meter RF hub range

The Aqara Water Leak Sensor 3 (supplied in a 3-pack) provides continuous liquid detection to prevent structural and plumbing damage. Measuring 1.97 by 1.97 by 0.59 inches, each sensor features an IP67 waterproof enclosure treated with a rust-proof exterior coating. Power is supplied by internal 3V lithium metal batteries, allowing tool-free placement beneath water heaters, sump pumps, washing machines, and sink vanities.

The sensor utilizes underside probe terminals capable of registering liquid accumulations as shallow as 0.5 millimeters (approximately 0.02 inches). Upon detection, the sensor transmits a Zigbee signal across its 10-meter (400-inch) operating range to the Aqara hub. The coordinator immediately triggers an onboard 55 dB acoustic alert and routes automated push notifications to connected smartphones. Visual verification can be confirmed by reviewing security feeds from an aqara poe camera.

Through the Aqara ecosystem, the sensor enables aqara zigbee local automation routines to command inline shutoff valves or disconnect power to adjacent equipment. The manufacturer documentation specifies that an Aqara hub is required and third-party coordinators are unsupported. The sensor provides targeted protection against moisture accumulation, yielding to contact sensors when perimeter monitoring is needed.

• High-sensitivity probe contacts detecting liquid levels down to 0.5 mm
• IP67-rated waterproof construction with corrosion-resistant exterior coating
• Integrated 3V lithium metal battery operation requiring no surface wiring
• 10-meter RF transmission range driving local 55 dB hub alarms

Best for: Tactile multi-action smart home remote triggers

Pros

• Three programmable actions per button
• Flexible doorbell and panic button modes
• High thermal tolerance up to 60°C

Cons

• Requires an Aqara Zigbee hub coordinator
• Single physical button layout

The Aqara Zigbee Wireless Mini Switch is a surface-mount controller providing tactile manual input for scenes and emergency alerts. Built with a normally open contact circuit and a push-button actuator, the switch operates in an ON-OFF-ON configuration with a 4.4A current rating and can withstand ambient operating temperatures up to 60 degrees Celsius. Its battery-powered, compact profile allows mounting on desks, bedside tables, or vertical walls.

The switch features three distinct input triggers: a single press, a double press, and a long press. Users can map these actions to disparate automation sequences, such as disabling all household lights, toggling HVAC states, or cycling security profiles. The device can also function as a stationary panic button that triggers an audible alarm on an Aqara hub, or as an entryway doorbell triggering custom ring tones.

Operating within a 400-inch transmission range of an Aqara Zigbee coordinator, the switch links directly to Apple HomeKit, Amazon Alexa, and Google Assistant. As with other Aqara child devices, connection requires an Aqara hub on the local network. The switch gives way to dedicated contact or leak sensors when autonomous threshold detection is required instead of manual physical intervention.

• Three programmable input actions: single press, double press, and long hold
• Configurable as a scene controller, emergency panic button, or doorbell
• Surface-mount construction with thermal tolerance up to 60 degrees Celsius
• 400-inch wireless range connecting through parent Aqara Zigbee hubs
